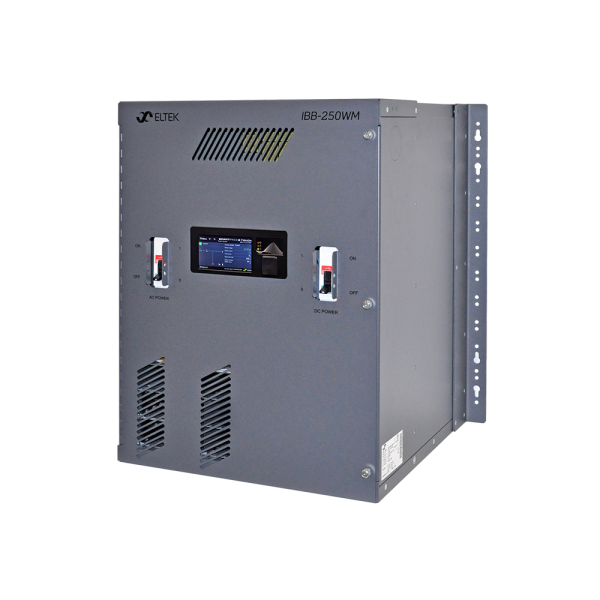

IBB-250WM battery charger system

The IBB-250 WM is an industrial power system designed to deliver significantly more power than conventional battery chargers in wall- or rack-mounted applications. Compliant with industry standards (including NEMA PE-5), the IBB-250WM’s reliability, modularity and advanced controller capabilities provide an infrastructure not just for today, but for years to come.
Overview

Reliability is a cornerstone of industrial applications, and it is a critical requirement for the DC power systems that support them.The IBB-250 WM offers modular architecture enabling affordable (N+1) redundancy,MTBF of each rectifier module >350,000 hours.An individual module failure has no impact on load in N+1 System

Replacing a failed unit is no longer a fire drill .Spare modules are practical to stock,hot plug-in design allows MTTR <5 minutes andno disruption to a working system

Key features

  • 6 form ‘C’ contact relays rated at 75 VDC
  • 3 form 'C' contact relays rated at 125 VDC standard on 125V chargers
  • optional for others
  • 25 KAIC breaker (standard) and 65 KAIC (optional)
  • Communications: modbus, TCP/IP
  • Reverse battery polarity protection
  • Surge protection device
  • Battery eliminator feature
Technical Data
Input
Voltage AC (operating range)
100 - 250 VAC
Max input AC Voltage
305 VAC
Mains configuration
230VAC Single phase;230VAC 3 phase (Δ)
DC Output
Max Power
9600 W
Voltage (adjustable range)
48 - 149 VDC
Current (maximum)
200 ADC
Max voltage
149 VDC
Max power
9,6 kW
LVD
Batteries
0
Loads
0
Ports
Available ports
Ethernet;RS-282;RS-485
Battery Distribution
Breaker positions up to
0
Breaker rating up to
0 A
DC Load Distribution
Breaker positions up to
0
Breaker rating up to
0 A
AC Load Distribution
Number of breakers
0
Breaker rating, up to
0 A
Other
Efficiency
96 %
Operating temperature
-40 - 50 °C
Storing temperature
-40 - 75 °C
Mounting Type
Wall
Dimensions
Dimensions WxHxD (inch)
22,6 x 16,8 x 18 "
Certifications
UL
UL 60950-1;UL 1012
