IBF DC/DC-HV

The high voltage industrial bulk feed (IBF) unit is designed for systems with high voltage DC input (85-300 Vdc).
Overview

IBF DC/DC-HV

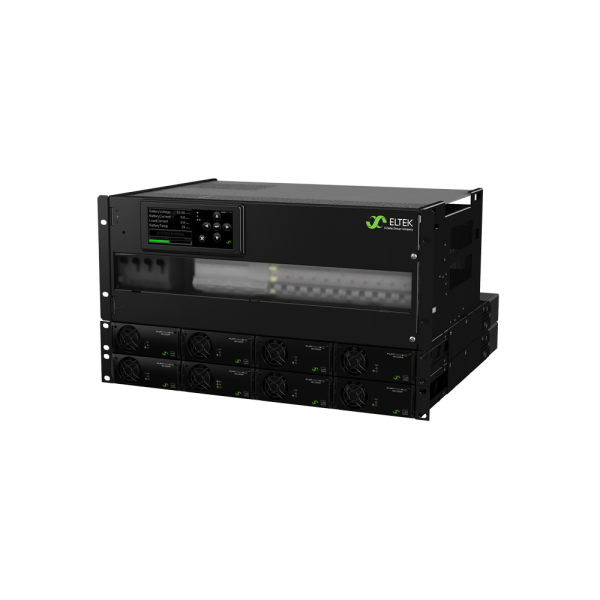

Designed for applications such as switchgear, telecom, emergency lighting and alarm systems. The Power Core is built around the Flatpack2 HE converters, with its compact design and simple installation making it a powerful 19” power supply package.

The IBF unit can be used as a stand-alone system or as an integrated unit together with our Flatpack2 rectifiers. The IBF unit is a part of our IBB (Industrial Building Blocks) product range.

Key features

  • Compact design
  • Simple installation
  • 85-300 Vdc input
  • House up to 8 converters
  • 2-16kW output
  • Bulk feed output
  • Max 300ADC output
  • Graphical 3,2 tft display
  • Ethernet for remote
  • 3 digital inputs
  • 3 relay outputs
  • SNMP protocol with trap
  • Hot pluggable
Technical Data
Input
Current (maximum)
90 ADC
Max input DC Voltage
300 VDC
DC Output
Max Power
16000 W
Current (maximum)
300 ADC
Max voltage
297 VDC
Max power
16 kW
DC Load Distribution
Breaker positions up to
8
Breaker rating up to
32 A
Other
Operating temperature
-40 - 45 °C
Dimensions
Dimensions WxHxD (mm)
482 x 267 x 432 mm
Dimensions WxHxD (inch)
18,98 x 10,51 x 17,01 "
Mounting dimensions
19" / 6U / 432 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
20
