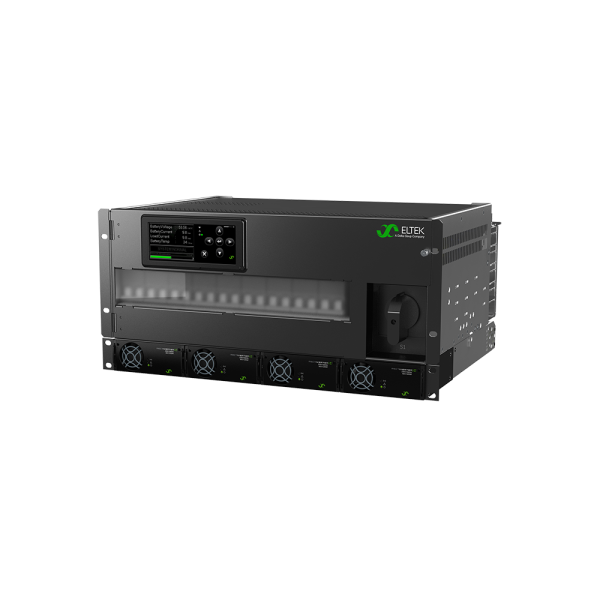

Rectiverter Power Core 6kVA 1ph MB

The Rectiverter power core combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac or 115 Vac loads, and 48 Vdc power for DC loads and battery charging.
Overview

Rectiverter Power Core 6kVA 1ph MB

The total output power for both AC and DC output is limited to max 8kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW

Key features

  • 230 or 115 Vac input/output
  • Single phase input/output
  • 48 Vdc input/output
  • 8kW total AC + DC output
  • Max 6kVA AC output
  • Max 4,8kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • Built in manual bypass switch
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
Technical Data
Input
Current (maximum)
128 ADC
Max input AC Voltage
275 VAC
Max input DC Voltage
58 VDC
Mains configuration
230VAC Single phase
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
6 / 4,8
DC Output
Max Power
4800 W
Voltage (adjustable range)
43 - 58 VDC
Current (maximum)
100 ADC
Max voltage
58 VDC
Max power
4,8 kW
AC Load Distribution
Number of breakers
18
Breaker rating, up to
10 A
Other
Operating temperature
-40 - 55 °C
Dimensions
Dimensions WxHxD (mm)
482 x 222 x 432 mm
Dimensions WxHxD (inch)
18,98 x 8,74 x 17,01 "
Mounting dimensions
19" / 5U / 432 Width (Inch) / Height (U) / Depth (mm)
Weight
16 kg
Design Standards
Ingress Protection (IP)
20
