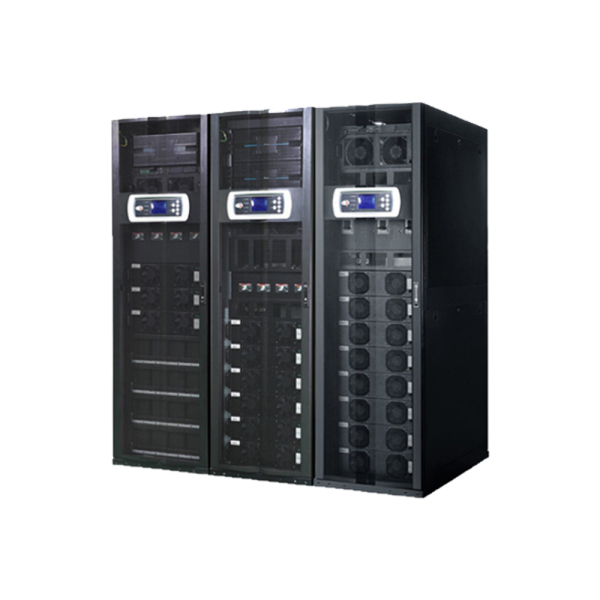

Modulon DPH 25-200kVA

Featuring a three-phase modularization architecture for power rating requirements above 20kVA, Modulon DPH systems provide customers with greater flexibility based on their initial power needs and scalability for future needs to lower their TCO and maximize system benefits.
Overview

Ultimate availability without compromising efficiency

The Modulon DPH supports ultimate availability for datacenter operations and provides the benefit of “pay as you go” without over-sizing the UPS. While achieving ultimate availability, the Modulon DPH does not compromise on power efficiency performance. When availability, efficiency and expanding according to business needs are essential, the Modulon DPH is the ideal UPS system to provide power protection and total cost of ownership (TCO) savings.

Key features

  • Advanced fault tolerance design
  • Self-synchronization of power and control modules for continuous on-line operation even with control module failure
  • Hot-swappable key modules and components for MTTR close to zero without risk
  • Vertical expansion from 25kW to 200kW supporting N+X redundancy in a single rack
  • Parallel expansion up to four units without requiring additional hardware
  • Optional Rack-Mount PDC for 75/150kW models
  • Optional built-in battery modules for 75kW models
  • Full rated power (kVA=kW) to maximize power availability
  • High operating efficiency of 95% at 30% load and 96% from 50% load
  • Low harmonics, less than 3%, to reduce upstream investment costs
  • Built-in manual bypass to eliminate maintenance-related downtime
  • Proactive detection of fan failure and switch fault
  • Plug and play modularity to simplify maintenance
Technical Data
Input
Voltage AC (operating range)
305 - 477 VAC
Max input AC Voltage
415 VAC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
415 VAC
Max power (kVA/kW)
200 / 200
Configurable inputs
Number of configurable inputs
2
Ports
Available ports
Ethernet;RS-485;USB;RS-282
Battery Distribution
Breaker positions up to
1
Breaker rating up to
600 A
LVBD
Yes
AC Load Distribution
Number of breakers
1
Breaker rating, up to
400 A
Other
Operating temperature
0 - 40 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
600 x 2000 x 1090 mm
Dimensions WxHxD (inch)
23,7 x 78,8 x 42,91 "
Weight
13360 lbs
Design Standards
Ingress Protection (IP)
20
