Overview

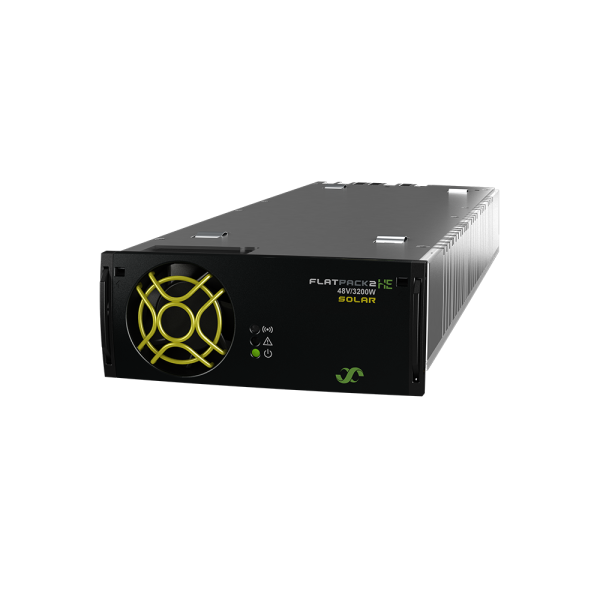

High efficiency solar charger for telecom applications
With the MPPT algorithm ensuring close to 100% panel utilization and an efficiency above 97%, the galvanic isolated solar charger sets new standards for renewable power in telecom.
Key features
- High efficiency– 97 %
- MPPT – Maximum Power Point Tracking
- Ground fault detection of PV string
- Supports high input voltage- up to 430V = low losses/small cables
- Telecom specifications
- Fully integrated in Eltek control system
- Global compliance
- Voltage keying
- Patented HE technology
Technical Data
Input
Voltage DC (operating range)
85 - 430 VDC
DC Output
Max Power
3200 W
Voltage (adjustable range)
43,5 - 57,6 VDC
Current (maximum)
66,7 ADC
Max voltage
57,6 VDC
DC Load Distribution
LVLD
Yes
Other
Cooling
Single fan
Efficiency
97 %
Operating temperature
-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)
109 x 41 x 324 mm
Dimensions WxHxD (inch)
4,29 x 1,63 x 12,76 "
Mounting dimensions
19" / 1U / 324 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet Flatpack2 48/3200 HE Solar
- Version 00
- 265 kB
- Document number: PEDM0000712842
