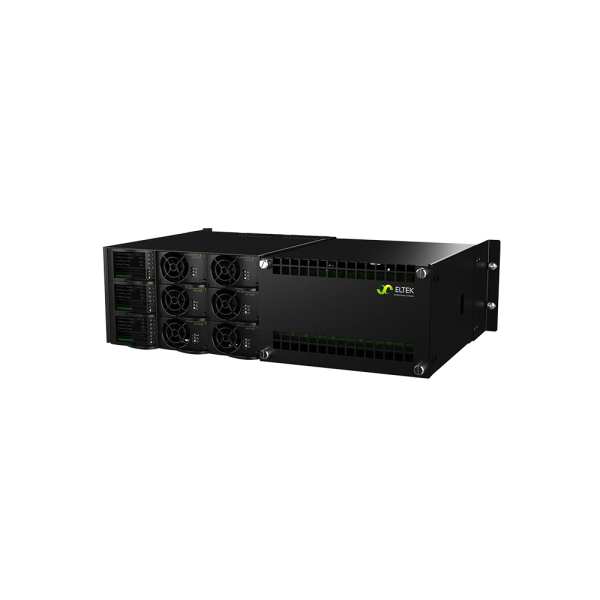

Flatpack S 24V/3x2kW
The combination of innovative design, efficiency and reliability makes the Flatpack S a perfect choice for telecom and industrial applications. With a system depth of only 250mm the Flatpack S systems will fit in most cabinets.
Overview
Flatpack S 24V/3x2kW
With its flexible alarm and monitoring options combined with bulk output, this 3U system is a superb building block for various industrial applications.
Key features
- The Flatpack S 3U 3x2kW rack has 3 separate DC systems consisting of 2 redundant rectifiers and 1 controller. For flexibility two of these systems can be paralleled to create a system with 4 rectifiers for greater out power or increased redundancy. All rectifiers have separate AC feeding allowing for redundant AC sources for each output.
- A relay output DC okay signal is available for each pair of rectifiers. For increased monitoring and control one Smartpack S controller can be plugged in for each rectifier pair and output.
- In addition to more warning and alarm relay outputs, it provides setup, status and logs through the display or the Ethernet port.
Technical Data
Input
Max input AC Voltage
300 VAC
Max input DC Voltage
300 VDC
Mains configuration
230VAC Single phase
DC Output
Current (maximum)
250 ADC
Max voltage
24 VDC
Max power
6 kW
Other
Operating temperature
-40 - 85 °C
Storing temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
482.6 x 132,5 x 300 mm
Dimensions WxHxD (inch)
19 x 5,22 x 11,81 "
Weight
6 kg
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Eltek Power Utilities Smart Powering Solutions Brochure
- Version 1
- 5693 kB
- Document number: MMP30.0007.BR3
-
Datasheet FPS 24V 3x2kW 6x230V Bulk
- Version 3
- 713 kB
- Document number: CS0603.000.DS3
