Overview

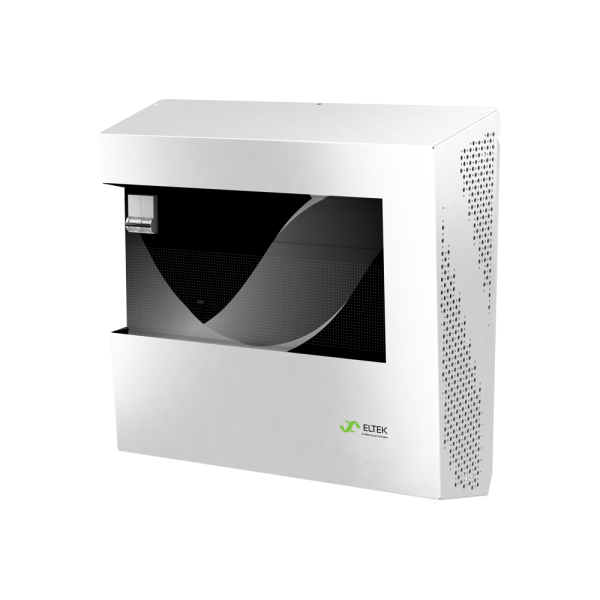

Micropack Wallbox
Compact design and simple installation and optional internal backup batteries makes it a really micro DC backup system. The Micropack wallbox has been designed for industrial and telecom applications with power requirements in the range of 120 - 1000W.
Key features
- Compact design
- Bulk-feed or integrated distribution
- Digital controllers

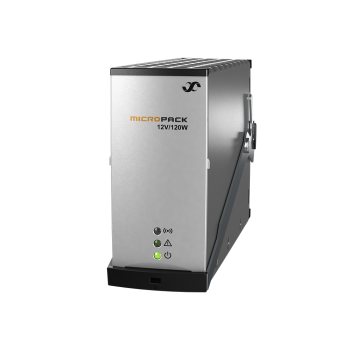

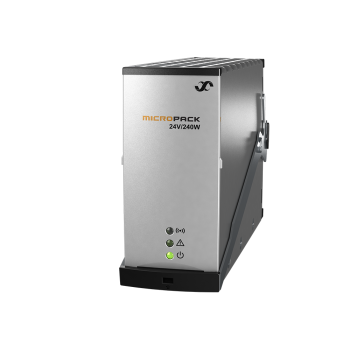

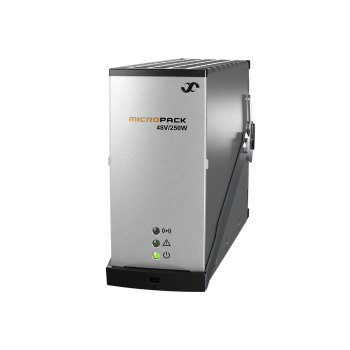

- The box is optimized for Micropack with its natural convection cooling
- Unique install ability
- Simple removable front cover effective time-to-install
- Global approvalsMicropack Wallbox is CE marked for worldwide installation
Technical Data
Input
Max input AC Voltage
300 VAC
Mains configuration
230VAC Single phase
DC Output
Max Power
1000 W
Voltage (adjustable range)
12 - 58 VDC
Current (maximum)
40 ADC
Max voltage
58 VDC
Max power
1 kW
Battery Distribution
Breaker positions up to
2
Breaker rating up to
50 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
4
Breaker rating up to
32 A
LVLD
Yes
Other
Operating temperature
-40 - 45 °C
Dimensions
Dimensions WxHxD (mm)
452 x 450 x 200 mm
Dimensions WxHxD (inch)
17,8 x 17,72 x 7,87 "
Weight
7 kg
Design Standards
Ingress Protection (IP)
22
Downloads ()
-
Eltek Power Utilities Smart Powering Solutions Brochure
- Version 1
- 5693 kB
- Document number: MMP30.0007.BR3
-
Datasheet Micropack Wallbox
- Version 7
- 288 kB
- Document number: CTOU0410.DS3
