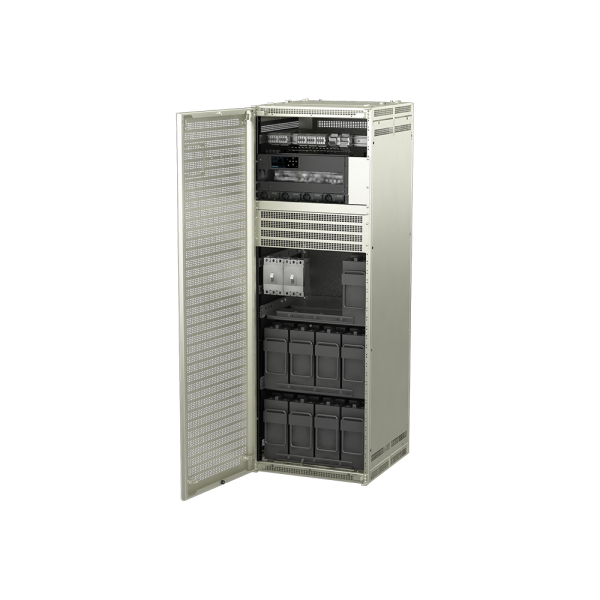

Flatpack2 IBB system
The Industrial IBB system is designed for 24-220 Vdc output, from 2-16kW output power
Overview
High Efficiency Industrial Power solutions
IBB Systems includes the Flatpack2 High Efficiency rectifier for DC power supply facilities and can be used with or without battery. All in all this gives the Industrial Building Blocks (IBB) superior flexibility and can be used in a various kind of application
Key features
- Compact design
- Simple installation
- 85-300 Vac input
- House up to 8 rectifiers
- 2-16kW output
- DC distribution
- Max 300A dc output
- Graphical 3,2 tft display
- Ethernet for remote
- 6 digital inputs
- 6 relay outputs
- SNMP protocol with trap
- Hot pluggable
Technical Data
Input
Max input AC Voltage
275 VAC
Mains configuration
230/400VAC 3 phase (Y)
DC Output
Max Power
16000 W
Current (maximum)
300 ADC
Max voltage
297 VDC
Max power
16 kW
Other
Operating temperature
-40 - 45 °C
Dimensions
Dimensions WxHxD (mm)
600 x 2000 x 600 mm
Dimensions WxHxD (inch)
23,62 x 78,74 x 23,62 "
Mounting dimensions
23" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
21
Downloads ()
-
Eltek Power Utilities Smart Powering Solutions Brochure
- Version 1
- 5693 kB
- Document number: MMP30.0007.BR3
-
Datasheet IBB Systems
- Version 2
- 1072 kB
- Document number: 2104924.DS3
