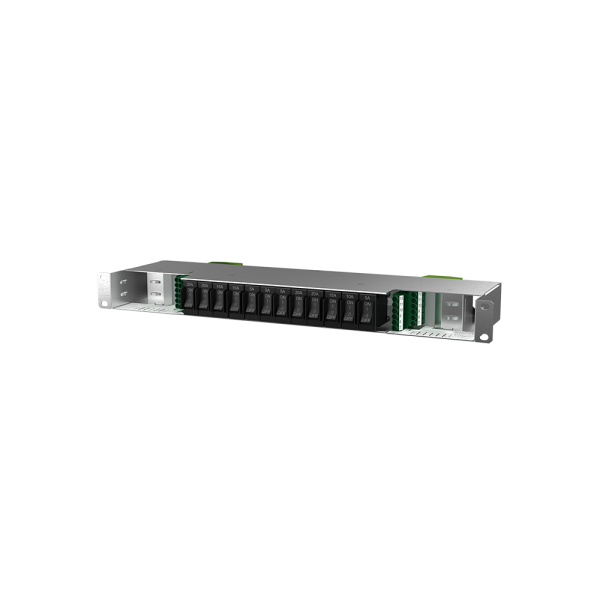

1U 19” MCB Distributions
The 1U distribution panel is a standalone unit designed to be used in all applications requiring negative distribution.
The compact size and easy connectivity makes these units perfect for applications with limited space or where additional distribution is required.
Pluggable breakers with ratings up to 30A ensure flexible, quick and easy output configuration.
The compact size and easy connectivity makes these units perfect for applications with limited space or where additional distribution is required.
Pluggable breakers with ratings up to 30A ensure flexible, quick and easy output configuration.
Overview
1U 19” MCB Distributions
The 1U distribution is designed to meet today's demands when it comes to state of the art, cost efficiency and flexibility in DC power systems.
Together with its compact size and reliability, this distribution is a key building block for future needs.
Together with its compact size and reliability, this distribution is a key building block for future needs.
Key features
- 1U high
- 19” wide
- 12/22 pluggable MCB positions
- Load alarm
- Easy accessed output connections
- Single or dual input
- Optional LVLD
- Global approvals
Technical Data
Input
Current (maximum)
200 ADC
Max input DC Voltage
60 VDC
DC Load Distribution
Breaker positions up to
22
Breaker rating up to
30 A
LVLD
Yes
Other
Operating temperature
-10 - 50 °C
Dimensions
Dimensions WxHxD (mm)
482.5 x 44 x 160 mm
Dimensions WxHxD (inch)
19 x 1,73 x 6,3 "
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet 1U 12-way MCB distribution
- Version 4
- 290 kB
- Document number: D00001.XXX.DS3
Request a quote
