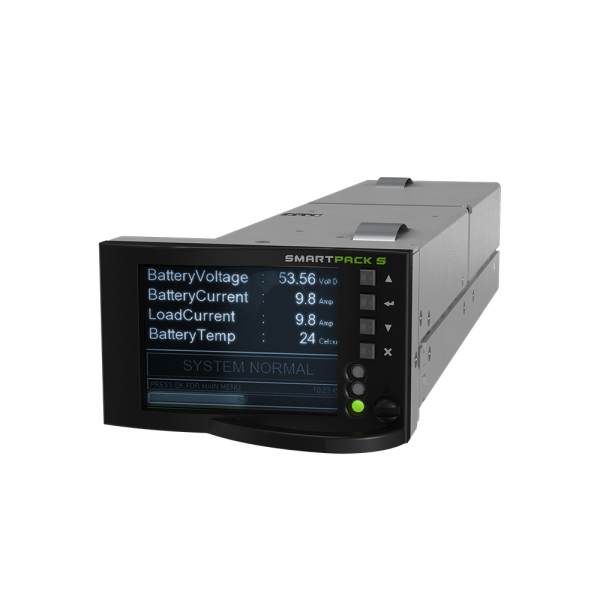

Smartpack S
The Smartpack S covers all control and monitoring needs of small to medium telecom and industrial DC power systems. Status and configuration is fully available through the display locally, or through the ethernet plug both remote or locally.
Overview
Compact, rich-featured, hot swappable, all-in-one controller
Designed for the Flatpack S system platform, the Smartpack S finds its way into many space restricted application. Used in the 1U high, 265mm deep power racks, Smartpack S offers comprehensive monitoring and control of a 2-3kW system occupying less than 6 liters.
Key features
- Graphical 2.2” tft high contrast, high resolution color display for easy navigation in user menu
- Ethernet for remote or local monitoring and control via web browser
- SNMP protocol with trap, set and get on ethernet. email of trap alarms
- 6 programmable relay outputs
- 6 programmable multi-purpose inputs (“digital inputs” or analog signals).
- Comprehensive logging
- Automatic battery monitoring and test
- Battery quality SoH based on test results and more
Technical Data
Input
Voltage DC (operating range)
10 - 75 VDC
Electrical
Power consumption
3.1 W
MTBF
900000 h
System connections
Voltage
1
Current
1
Battery
(2) midpoint
Load
Grount fault detection
Output
Output
Form-C
Dry Contact (NO-C-NC)
Max 75V
Configurable inputs
Number of configurable inputs
6
Digital configurations
#1-6: Open/Closed
Number of analog configurations
6
Analog configurations
#1-4:
Temperature: NTC probe
Analog:+/-0-10V
4-20mA current sensing
LVD
Batteries
1
Loads
1
Ports
Available ports
Ethernet;RS-282;RS-485
Display
Size
2,2 "
Resolution
QVGA 32k color TFT
Other
Operating temperature
-20 - 65 °C
Storing temperature
-40 - 70 °C
Dimensions
Dimensions WxHxD (mm)
72.2 x 43 x 220,7 mm
Dimensions WxHxD (inch)
2,8 x 1,7 x 8,7 "
Design Standards
Ingress Protection (IP)
20
Certifications
Marine
DNV 2.4 Valid for part no. 242100.410M
Software functionality
Remote Monitoring
DHCP
DHCPv6
SNMP v1, v2c and v3
MODBUS TCP/RTU Slave
Modem Call-back & SMS Alarm for GSM modems
IPv4
IPv6 (static-link)
IPv6 (stateless autoconfig)
IPv6 (statefull autoconfig) - DHCPv6
SNTP - clock syncronizing
SMTP/email custom reports as .csv attached
SMTP Secure
RADIUS (single-sign on)
FTP - file transfeer (SW updates, log's download, etc)
FTPS - FTP secure
UDP pComm for PowerSuite (Windows Config/Monitoring Tool)
HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen)
HTTPS (TLS enqrypted web interface)
Rectifier Functions/Monitoring
Efficiency Manager
HE Priority
Slow/Fast/Li-Ion voltage ramp-up
Power Ramp Up
Adjustable Current Limit
Inventory overview
Auto adressing/plug-and play
Manuel adesssing override
Dynamic output OVS
Start-Up delay
Rectifier Current Monitoring (2-level Alarm)
Rectifier Error Monitoring (2-level Alarm)
Rectifier Communication Error Monitoring (2-level Alarm)
Rectifier Usage Monitorting (2-level Alarm)
Rectifier Usage BT Spec Monitorting (2-level Alarm)
Rectifier Current Share Error Monitorting (2-level Alarm)
Rectifier Input Air Temperature Highest Monitorting (2-level Alarm)
Rectifier Qty with Low Mains Monitorting (2-level Alarm)
Rectiverter Functions/Monitoring
Adjustable output frequency
Adjustable output AC voltage
Adjustable frequency hold-in range/hysteresis for inverter mode
Adjustable DC Current Limit
Inventory overview
Auto adressing/plug-and play
Manuel adesssing override
Dynamic output OVS
Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm)
Rectiverter AC Output Frequency Monitoring (4-level Alarm)
Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm)
Rectiverter DC Output Current Total Monitoring (2-level Alarm)
Rectiverter Error Monitoring (2-level Alarm)
Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm)
Rectiverter AC Capacity Monitoring (2-level Alarm)
Rectiverter DC Capacity Monitoring (2-level Alarm)
Rectiverter Temperature (4-level Alarm)
Rectiverter Communication Error Monitoring (2-level Alarm)
Battery Management/Monitoring
Temperature Compensation
Symmetry - Midpoint measurement 12V, 24V, 30V, 36V
Symmetry - Block measurement 6V, 12V, 24V
Auto Boost Charge
Interval Boost Charge
Follow-up Boost Charge
Equalize Charge, manual & inerval
Temperature Compensation during Boost & Equalize Charge
Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec.
Battery Discharge Health (SoH) testing - simple, based on backup time requirement
Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme
Battery Test logging
Battery DoD Cycle logging
Battery Cycle counter logging
Battery Run time logging
Battery LifeTime Prediction based on temp ranges
Battery Discontinuance Testing -simple or advanced (based on shunt in each string)
Analog Battery Float charge regulation based on input voltage signal
Battery Voltage Monitoring (4-level alarm)
Battery Current Monitoring (4-level alarm)
Highest of multiple battery temperature Monitoring (4-level alarm)
Individual Battery Temperatures (4-level alarm)
Battery SoC Monitoring (2-level Alarm), % or Ah
Accumulated Ah Charged/Discharged Monitoring (2-level alarm)
Failed Battery Test Monitoring (1-level alarm)
Individual Battery Fuse Monitoring (1-level alarm)
Individual Battery String Current Monitoring (2-level alarm)
FIAMM SONICK Battery BMS communication
SAFT Evolion Battery BMS communication
Narada Battery BMS communication
Leoch Battery BMS communication
Sacred Sun Battery BMS Battery BMS communication
Northstar ACE Battery(Gateway) communication
Eltek Generic Battery communiction protocol
LVBD (voltage, temperature, mains controllable)
Mains/Grid Monitoring
Phase Failure Monitoring (2-level Alarm)
Phase Voltage Monitoring (4-level Alarm)
Frequency Monitoring (2-level Alarm)*
Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)*
Power Factor Monitoring 3 phases (2-level Alarm)*
Mains Current Monitoring 3 phases (2-level Alarms)*
*Require AC Mains Monitor CAN Node or Smartmeter communication
Load Management/Monitoring
LVLD
Coldstart LVLD
Load Fuse Monitoring (1-level alarm)
Load Current Monitoring (2- level alarm)
Individual Load Fuse Monitoring (1-level alarm)
Individual Load Current Monitoring (2- level alarm)
Individual Load Power Monitoring
Individual Load Energy logging
Individual Load Energy cost logging
Programmable Logic
OR function of multiple alarms/events
AND function of multiple alarms/events
Inversion of logical signals
Task Scheduler (hourly, daily, weekly, monthly) of any commands/events
Alarm Grouping
Available Logs
Energy Logging (mains, rectifier, rectiverter, battery, load) - hourly, dailiy, weekly
Data Logging (10 parameters, various trigger intervals and event triggers)
BHL/HAA-loggs
Account login log
Change log
Inventory Export
Climate Control & Monitoring
Fan control, linear speed vs. temp / max speed
Fan Speed Deviation Monitoring
Humidity Reduction
Intervall Preasure Test
Various Controllers
Security setup (open/close UDP/TCP ports)
User Account Setup
Programmable Buzzer
Remote Software Upgrade - maincontroller over IP
Remote Software Upgrade - CAN Nodes through maincontroler via FTP
Controller/Power Module LED Test
Programmable Viritual Inputs
XML Configurations - full parameter flexibility
XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
