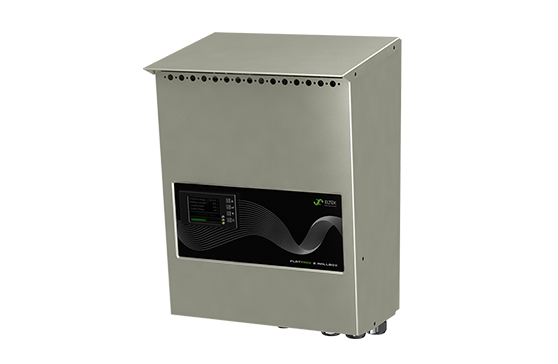

Flatpack S Wallbox

The Flatpack S Wallbox brings HE Technology to small-load industrial, marine and rail applications

Compact, wall-mounted and powerful – for complex sites where space is limited

The Flatpack S Wallbox makes it easy to feed a great variety of applications on ships or other complex sites. Wherever power is in high demand, but space is limited, Flatpack S is the simple and powerful solution. A marine version is available certified according to DNV 2.4.

High efficiency - modular architecture

The Flatpack S Wallbox is built around our Flatpack S rectifier, providing high efficiency conversion in a very compact solution. It was designed for distributed power applications in industrial, railway and marine applications.

It is ideal for control and protection, SCADA, emergency lighting or diesel start applications. There is also a version of the product that fulfills the DNV 2.4 standard for shipboard communications and safety and automation systems.

We have many customers who have asked for these features. I think they will be very excited to see just how much we've delivered on their requests

Lars Dousa, VP Industrial

Full control with comprehensive monitoring

The Flatpack S Wallbox can be managed by Eltek's advanced Smartpack S controller that provides remote monitoring, maintenance and data collection.

The Smartpack S has enhanced battery management capabilities including extensive testing features, automatic temperature compensated battery charging and support for automatic and manual boost-charging methods.

In many cases, these features can extend the life of batteries and provide an accurate estimate of battery capacity and remaining lifetime.

Jan 12, 2017

Eltek Flatpack S Wallbox replacement for SMPS 700

Eltek has been a successful solution provider for small-load applications with its SMPS 700 system. The Flatpack S Wallbox is a drop-in replacement for this system allowing customers to get improved manageability and power efficiency in the same form factor with the same installation points and electrical cable locations.

The power of simplicity

"The Flatpack S Wallbox is a big advance for small-load applications both because it brings HE technology and also because it is the only modern design that features the easy maintenance, power configuration flexibility and controller features that help to reduce energy and management costs significantly," said Lars Dousa, Vice President of the Industrial segments

"We have many customers in this market who have asked for these features and I think they will be very excited to see just how much we've delivered on their requests."

 A high efficient replacement

Eltek has been a successful solution provider for the small-load applications market with its SMPS 700 system and other products. The Flatpack S Wallbox is a drop in replacement for this system allowing customers to get improved manageability and power efficiency in the same form factor with the same installation points and electrical cable locations.

The modular system measures only 271 mm wide by 370 mm tall and 193 mm deep

The Flatpack S Wallbox offers up to 95 percent power conversion efficiency for loads up to 63A and provides a direct replacement for Eltek's popular SMPS 700 system.

The modular system measures only 271 mm wide by 370 mm tall and 193 mm deep.

It can accept one or two Flatpack S rectifier with 230V single phase input between 85 and 300VAC/ DC. 24V modules are available in 500W, 1000W outputs; 48V modules are available in 1000W and 1800W outputs. The system features two pole load and battery distribution (LVBD).

Easy installation and servicing

Rectifiers are hot pluggable. Mounting and connections can be done in a matter of minutes.

The chassis offers IP23 level of protection. The Flatpack S Wallbox is simple to administer with a removable front panel that provides easy access for service and installation.
