V-Series high efficiency rectifiers

Eltek V-series rectifiers provide industry-leading efficiency in a 2RU footprint. Reliability, scalability, and hot-swap capability make for optimal system design and cost-effective deployment – from initial installation to future upgrades.The high efficiency (HE) models deliver up to 96% conversion efficiency.
Request a quote Contact us
Overview

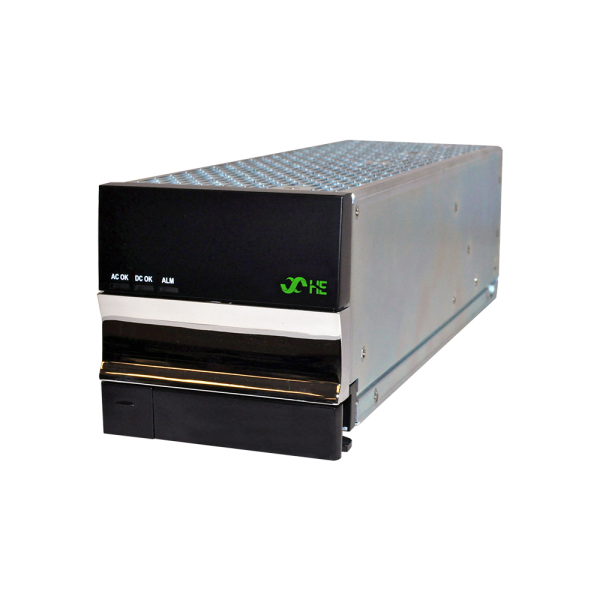

V-series high efficiency rectifier module

Vertically cooled 2RU rectifiers with wide range of output modules available.

Key features

  • Average 96% efficiency (V-series HE models)
  • V-series high efficiency (HE) rectifiers are ENERGY STAR qualified products
  • Only 2RU in height
  • Operates at full power in temperatures up to +65ºc
  • NEBS level 3
Technical Data
Input
Voltage AC (operating range)
100 - 240 VAC
DC Output
Max Power
2500 W
Voltage (adjustable range)
42 - 56 VDC
Current (maximum)
50 ADC
Max voltage
56 VDC
Other
Cooling
Single fan
Certifications
UL
UL 60950-1
Telcordia approvals
NEBS GR1089-CORE;NEBS GR63 CORE Zone 4
Software functionality
Rectifier Functions/Monitoring
Remote Sense, Module disable, Current Share, I2C SCL, SDA
