BDCBB - BDFB -48Vdc Power Distribution Bay
The Eltek BDCBB/BDFB can be equipped as a single bus bay or offer up to six load busses – depending upon the desired configuration. The bay is designed to provide 800 amps per feed at –48V, and has a maximum total current capacity of 4800 amps.
Overview

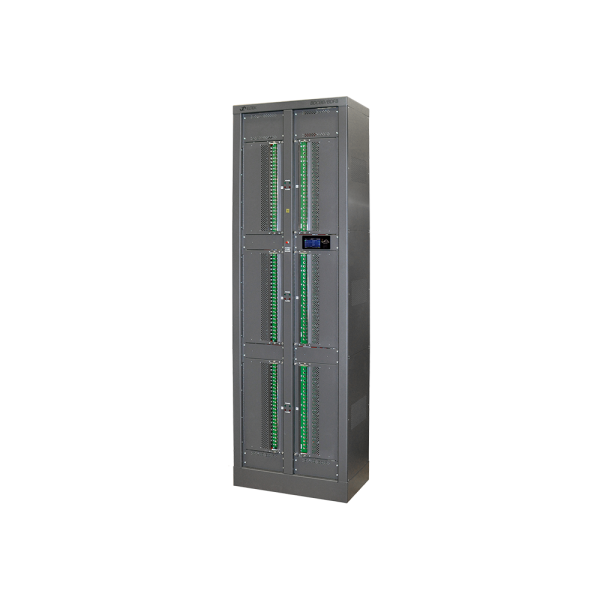

BDCBB/BDFB -48 VDC Power Distribution Bay
The distribution bay is equipped with the industry-leading Smartpack2 Touch controller, which displays system load voltage and current on each bus. In addition to standard alarms, the Smartpack2 controller’s extensive programing capabilities allow for custom alarm threshold values, alarm grouping and more through both remote and local access.
The bay can be ordered either with or without an internal ground bus assembly. Optional external ground bars are also available. It is designed for top- or bottom-feed cabling.
Each bay includes a standard cable management package.
Optional rear-facing DC load cabling available.
The bay can be ordered either with or without an internal ground bus assembly. Optional external ground bars are also available. It is designed for top- or bottom-feed cabling.
Each bay includes a standard cable management package.
Optional rear-facing DC load cabling available.
Key features
- Advanced-function Smartpack2 Touch controller
- Cable management package
- Optional alarm battery supply (ABS) circuit
- Fuse and/or circuit breaker distribution:
- Upgradeable in the field
- 15” deep, 7’ tall with optional 2’ extensions
- 26” and 34”-wide bay options
- Either two, four, or six 800 amp a/b input feeds, each equipped with 1000 amp shunts
- Two 750 kcmil terminations per feed
- Optional increase to four 750 kcmil terminations per feed
- Audible alarm with user-configurable on/off feature
- Removable side panels
- NEBS level 3
- CSA/VDE 60950-1, 2nd edition
Technical Data
Input
Current (maximum)
4800 ADC
Voltage DC (operating range)
40 - 58 VDC
Max input DC Voltage
58 VDC
Electrical
MTBF
1300000 h
System connections
Voltage
2 to 7
Current
2 to 6
Battery
N/A
Load
N/A
Output
Output
Quantity 5 Form-C
Dry Contact (NO-C-NC)
Max 75V
Configurable inputs
Number of configurable inputs
0
Digital configurations
Not Available
Number of analog configurations
0
Analog configurations
Not Available
Ports
Available ports
Ethernet
Display
Size
3,2 "
Resolution
QVGA 32k color TFT
DC Load Distribution
Breaker positions up to
144
Breaker rating up to
250 A
LVLD
No
24-position Bullet Breaker Panel
<div class="ExternalClassE29D149BD7164FD8956E80205FBA00B8"><html>
<p>Optional 2 - 4- 6 Panel Configurations Available</p>
</html></div>
Other
Operating temperature
-5 - 30 °C
Storing temperature
-40 - 70 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (inch)
15 x 84 x 26 "
Weight
375 lbs
Certifications
UL
UL 60950-1
Telcordia approvals
NEBS GR1089-CORE;NEBS GR63 CORE Zone 4
Software functionality
Remote Monitoring
DHCP
DHCPv6
SNMP v1, v2c and v3
MODBUS TCP/RTU Slave
Modem Call-back & SMS Alarm for GSM modems
pComm (Windows Config/Monitoring Tool) via Modem & IP
IPv4
IPv6 (static-link)
IPv6 (stateless autoconfig)
IPv6 (statefull autoconfig) - DHCPv6
SNTP - clock syncronizing
SMTP/email custom reports as .csv attached
SMTP Secure
RADIUS (single-sign on)
FTP - file transfeer (SW updates, log's download, etc)
FTPS - FTP secure
UDP pComm for PowerSuite (Windows Config/Monitoring Tool)
HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen)
HTTPS (TLS enqrypted web interface)
Downloads ()
-
Datasheet - BDCB-BBDFB Power Distribution Bay
- Version 4
- 499 kB
- Document number: 2102146
