DC/DC Power System 380/48V USA
Integrating state-of-the-art, high efficiency, switch-mode rectifier technology with Eltek’s feature-rich Smartpack2 control and monitoring unit, the high-performance EcoTower system provides 380Vdc – 48Vdc power conversion for Data Centers using Flatpack2 HE DC/DC Converters. The power system offers configurations up to 60kW.
Overview

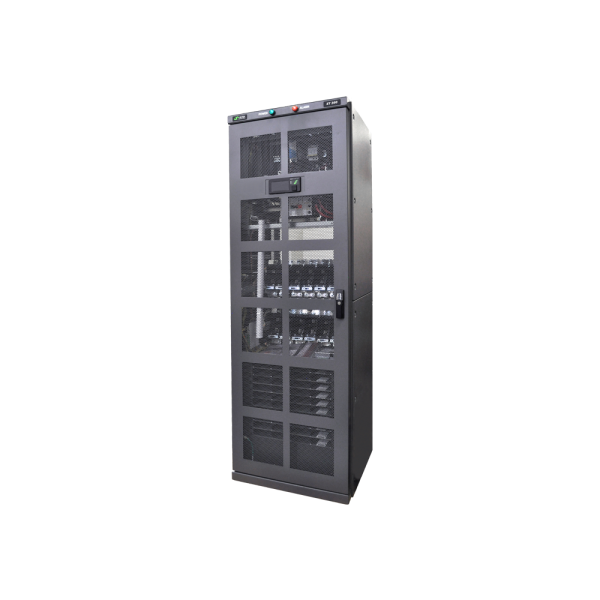

380Vdc EcoTower ET380 DC/DC converter power system
Key features
- Versatility
- Scalable
- High Efficiency
- Safety
- Rugged design Five 4-position converter shelves
- Twenty 3000W converters max
- Redundant 250A input breakers
- Internal DC bus capability 1200A
- Converter bay delivers up to 1200A
- Input SPD
- -48V Load distribution provided
- Based upon distributed Smartpack2 control system
- Interactive display on main bay.
Technical Data
Input
Current (maximum)
246 ADC
Voltage DC (operating range)
260 - 400 VDC
Max input DC Voltage
400 VDC
DC Output
Max Power
3000 W
Voltage (adjustable range)
50 - 55 VDC
Current (maximum)
1200 ADC
Max voltage
55 VDC
Max power
60 kW
DC Load Distribution
Breaker positions up to
72
Breaker rating up to
600 A
LVLD
No
24-position Bullet Breaker Panel
<div class="ExternalClassF8D12CACD7894BB4AEE2BDD9B569DA09"><html>
<p>Maximum 4 panels allowed </p>
</html></div>
11-position BG Module Panel
<div class="ExternalClass2F8B69A475B54B4EB1F3414A54C134F2"><html>
<p>Maximum 2 panels allowed</p>
</html></div>
GJ Breaker/TPL Fuse Panel
<div class="ExternalClass7AC62E8C47A74B9799A587150DDEC814"><html>
<p><span id="ms-rterangepaste-start"></span>Maximum 2 panels allowed<span id="ms-rterangepaste-end"></span></p>
</html></div>
Other
Cooling
Single fan
Efficiency
98,2 %
Operating temperature
-40 - 40 °C
Storing temperature
-40 - 70 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (inch)
26 x 84 x 26,5 "
Weight
500 lbs
Certifications
UL
UL 60950-1
Telcordia approvals
NEBS GR63 CORE Zone 4
