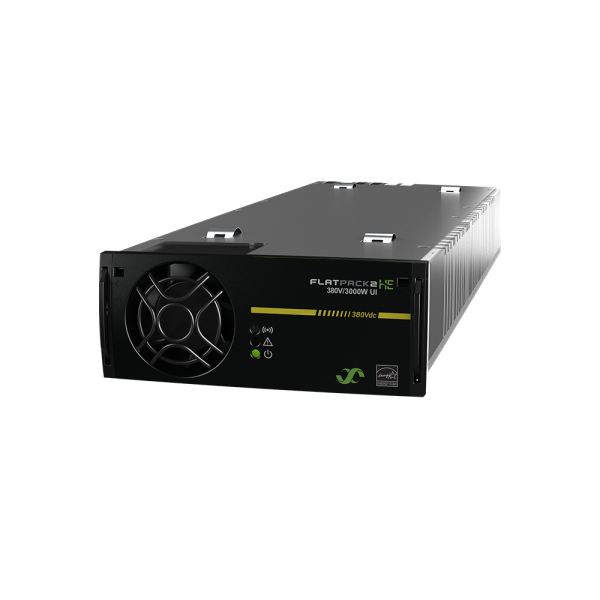

Flatpack2 380V/3000W HE
The Flatpack2 380V/3000W HE rectifier has high efficiency, OR-ing protection on output and high output power. Distribute pure battery backup DC voltage with a minimum of loss. Remove the low reliability DC-AC step in the central backup power system and maximize its reliability and efficiency.
Overview
HE rectifier for 380 Vdc in data centers

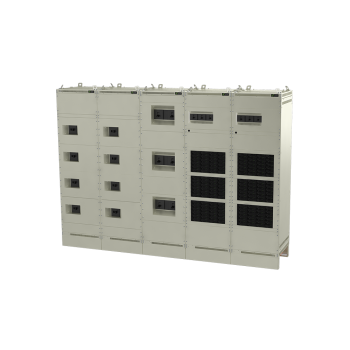

Stack cabinets with up to 72 rectifiers to build large power systems monitored by the Smartpack2 controller.
Key features
- Power density - 33 W/inches3
- High efficiency – 96.2%
- OR-ing protection on output
- Hot pluggable – MTTR 5 min
Technical Data
Input
Voltage AC (operating range)
85 - 305 VAC
DC Output
Max Power
3000 W
Voltage (adjustable range)
300 - 400 VDC
Current (maximum)
9 ADC
Max voltage
400 VDC
Other
Cooling
Single fan
Efficiency
96,2 %
Operating temperature
-40 - 167 °F
Dimensions
Dimensions WxHxD (mm)
109 x 41,5 x 327 mm
Dimensions WxHxD (inch)
4,29 x 1,63 x 12,78 "
Weight
4,3 lbs
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet Flatpack2 380V Rectifier
- Version 00
- 335 kB
- Document number: PEDM0000873175
