Overview

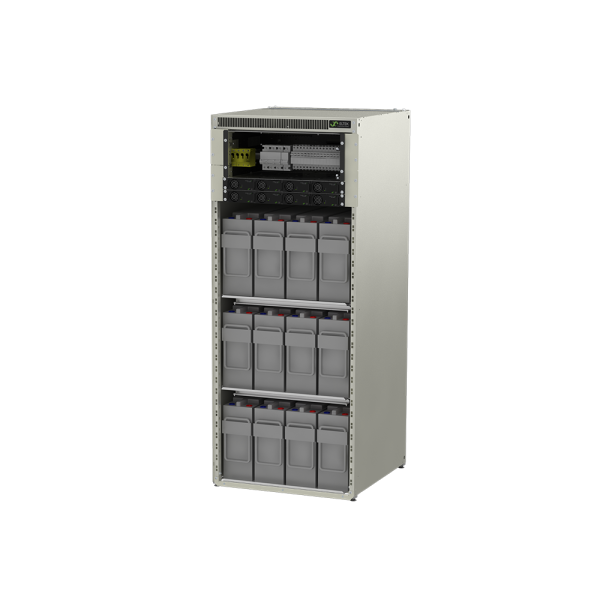

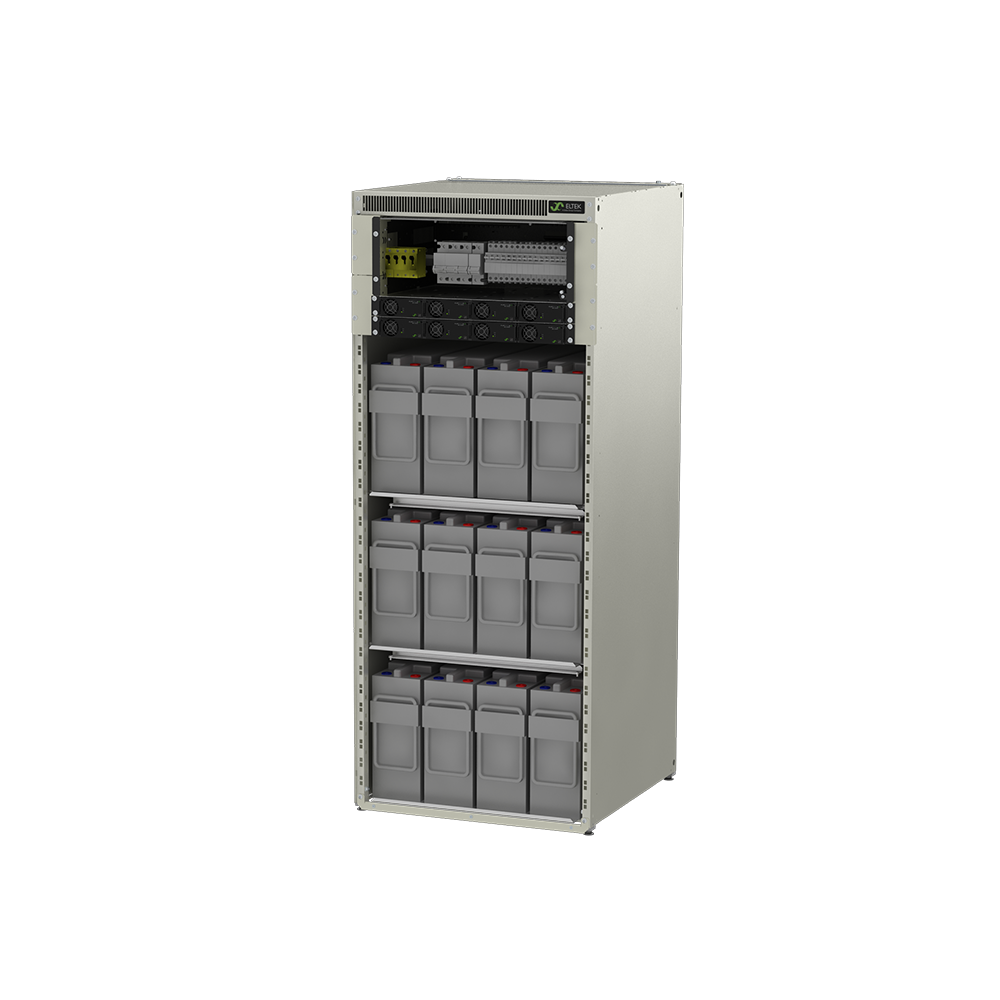

Flatpack2 power system with battery compartment.
Small power system with up to 16kW of 48VDC with built in battery capacity of 2x 92Ah battery strings. 16 load fuses and 3x battery fuses.
Key features
- Flatpack2 Rectifier technology
- Smartpack S controller
- 12 + 4pcs of load breakers
- 2x battery shelves
- Small form factor cabinet, 400x600mm footprint
- 2x mains input (A/B)
Technical Data
Input
Voltage AC (operating range)
185 - 285 VAC
Mains configuration
230VAC 3 phase (Δ)
Configurable inputs
Number of configurable inputs
6
Number of analog configurations
6
DC Output
Voltage (adjustable range)
42 - 58 VDC
Current (maximum)
333 ADC
Max voltage
58 VDC
Max power
16 kW
LVD
Batteries
3
Loads
10
Ports
Available ports
Ethernet
Battery Distribution
Breaker positions up to
3
Breaker rating up to
200 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
16
Breaker rating up to
125 A
LVLD
Yes
Other
Cooling
Single fan
Efficiency
96 %
Coating
steel finnish
Maximum battery trays
2
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
600 x 1000 x 400 mm
Design Standards
Ingress Protection (IP)
20
