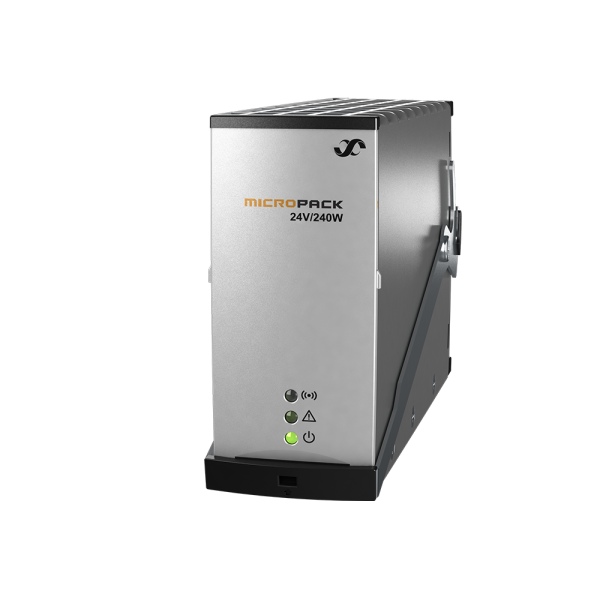

Micropack 24V/240W WOR

The Micropack system is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements.

Use as stand alone or in a flexible off the shelf configurable system.
Overview

Compact, full-featured DIN rail power modules

The Micropack power system extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.

Key features

  • Convection cooled – inaudible
  • Accepts 85 – 300 Vac/Vdc input
  • 12, 24-30, 48 Vdc output versions
  • NiCad support for 12 and 24 Vdc
  • Quick-trip pulse to help open load MCB
  • Pot-meter voltage adjustment for standalone
  • Module alarm relay contact for basic monitoring without controller
  • Active current sharing
  • Modular approach in DIN-rail mountable back planes
  • Off-the-shelf delivery
Technical Data
Input
Voltage AC (operating range)
85 - 300 VAC
Voltage DC (operating range)
85 - 300 VDC
DC Output
Max Power
240 W
Voltage (adjustable range)
21,5 - 36 VDC
Current (maximum)
10 ADC
Max voltage
36 VDC
Other
Cooling
Convection
Efficiency
92 %
Operating temperature
-40 - 142 °F
Dimensions
Dimensions WxHxD (mm)
39.0 x 88,5 x 149 mm
Dimensions WxHxD (inch)
1,54 x 3,48 x 5,87 "
Weight
1,1 lbs
Design Standards
Ingress Protection (IP)
20
