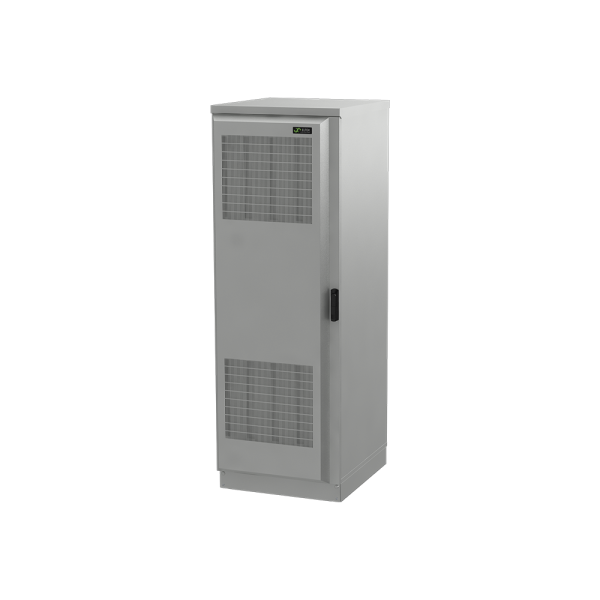

Outdoor Type 4
The Type 4 telecom power outdoor cabinet is new platform generation designed to fit customer needs, configuration flexibilitiy and supports variety of applications.The cabinet is well suited for power, batteries and telecom equipement.
Overview
Reliability
Reliability within the outdoor plant depends upon a cool, dry and secure environment for the electronics such as the DC power and Telecom equipment. The Outdoor Type 4 Power Cabinet more than accomplishes this with its Thermal Management that will keep sensitive electronics functioning in the most extreme environments.
Key features
- 19” equipment spaceOptional thermal insulationDC power, telecom equipment and battery backupSingle skin galvanized steel constructionDoor mounted fan filter thermal managementScalable cooling capacityIP55Easy installationEasy filter changeEasy maintenance
Technical Data
Thermal Management Option
Fan Filter
2500W
Other
Cooling
Single fan
Coating
RAL 7035
Options
Thermal insulation, Heaters, Clogged filter detection, Filter presence detection, Door switch, Smoke detector, Humidity detection, Service light, Various cable glands, Various locking cylinders, Battery shelves, Document holder, PC shelf
Maximum battery trays
4
Mounting Type
Floor
Dimensions
Height (Rack space)
2.0 (39U);1.5 (28U) m
Depth
0.77 m (Not including cooling/door option - see datasheet for details)
Width
0.7 m
Design Standards
Ingress Protection (IP)
55
Downloads ()
-
Datasheet Outdoor Type 4
- Version 2
- 431 kB
- Document number: 368296.DS3
