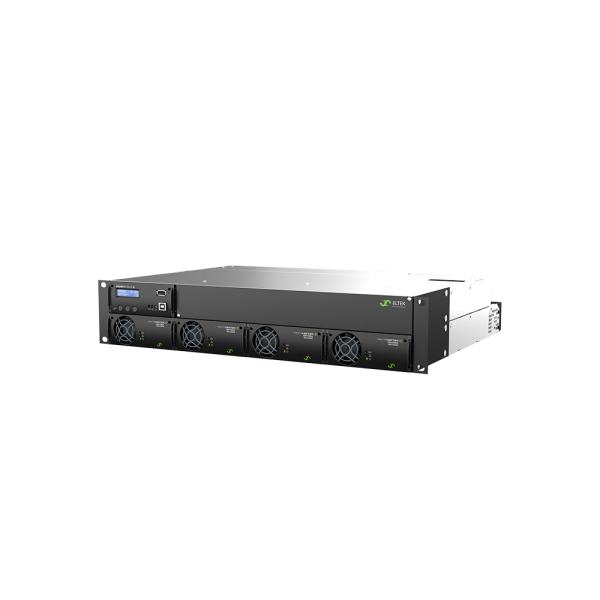

Rectiverter 2U Power Core 6kVA 1ph
The Rectiverter 2U power core combines both AC and DC feed into one 2U compact unit. Simultaneously it provides AC backup power for 230 VAC or 115 VAC loads, and 48 VDC power for DC loads and battery charging.
Overview
Rectiverter 2U Power Core, 6kVA 1ph
The total output power for both AC and DC is limited to a total 8 kW. AC and DC output limits can be set according to the connected load, where the limitation for AC load is set to max 6 kVA and for DC load to max 4,8 kW.
Key features
- Compact design and simple installation
- Single phase 230 or 115 VAC input/output
- 48 VDC input/output
- House up to 4 rectiverter modules
- 8kW total AC + DC output
- Max 6 kVA AC output
- Max 4,8 kW DC output
- 1 or 2 pole AC distribution option1pole DC distribution option
- Built in transfer technology
- 150% overload capability, 15s
- 600% quick trip current, 20ms
- Hot pluggable
- Smartpack Rcontrol unit
Technical Data
Input
Current (maximum)
128 ADC
Max input AC Voltage
275 VAC
Max input DC Voltage
58 VDC
Mains configuration
230VAC Single phase
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
6 / 4,8
DC Output
Max Power
4800 W
Voltage (adjustable range)
43 - 58 VDC
Current (maximum)
100 ADC
Max voltage
58 VDC
Max power
4,8 kW
Battery Distribution
Breaker positions up to
2
Breaker rating up to
150 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
3
Breaker rating up to
60 A
LVLD
No
AC Load Distribution
Number of breakers
3
Breaker rating, up to
16 A
Other
Cooling
Single fan
Operating temperature
-40 - 55 °C
Dimensions
Dimensions WxHxD (mm)
483 x 97 x 386 mm
Dimensions WxHxD (inch)
19 x 3,8 x 15,2 "
Mounting dimensions
19" / 2U / 386 Width (Inch) / Height (U) / Depth (mm)
Weight
21,8 lbs
Downloads ()
-
Rectiverter 2U Power Core, 6kVA 1ph
- Version 1
- 472 kB
- Document number: CTOR0402.DS3
