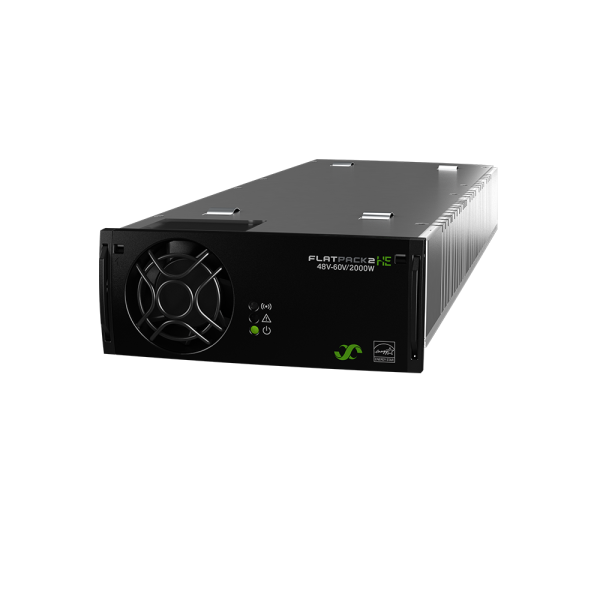

Flatpack2 48V-60V/2000W HE

Reliable high efficiency rectifier for industrial applications.
Overview

Flatpack2 48V-60V/2000W HE

Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages. The Flatpack2 48V-60V/2000W HE is a cost efficient rectifier for 48V and 60V lead acid battery systems as well as 48V NiCad.

Key features

  • High efficiency – 96.2 %
  • Proven reliability
  • High power density
  • Application flexibility - 2kw to multicabinet installations
  • Modular design - MTTR and LT5mins
  • AcceptsDC input (DC/DC converter)
  • Global compliance (CE, UL, NEBS)
  • Marineand offshore certifications
  • Patented technology
Technical Data
Input
Voltage AC (operating range)
85 - 300 VAC
Voltage DC (operating range)
80 - 300 VDC
DC Output
Max Power
2000 W
Voltage (adjustable range)
39,9 - 72 VDC
Current (maximum)
41,7 ADC
Max voltage
72 VDC
Other
Cooling
Single fan
Efficiency
96,2 %
Operating temperature
-40 - 75 °C
Dimensions
Dimensions WxHxD (mm)
109 x 41,5 x 327 mm
Dimensions WxHxD (inch)
4,29 x 1,63 x 12,78 "
Weight
1,95 lbs
Certifications
Marine
DNV 2.4 Valid for part no. 241115.705M
