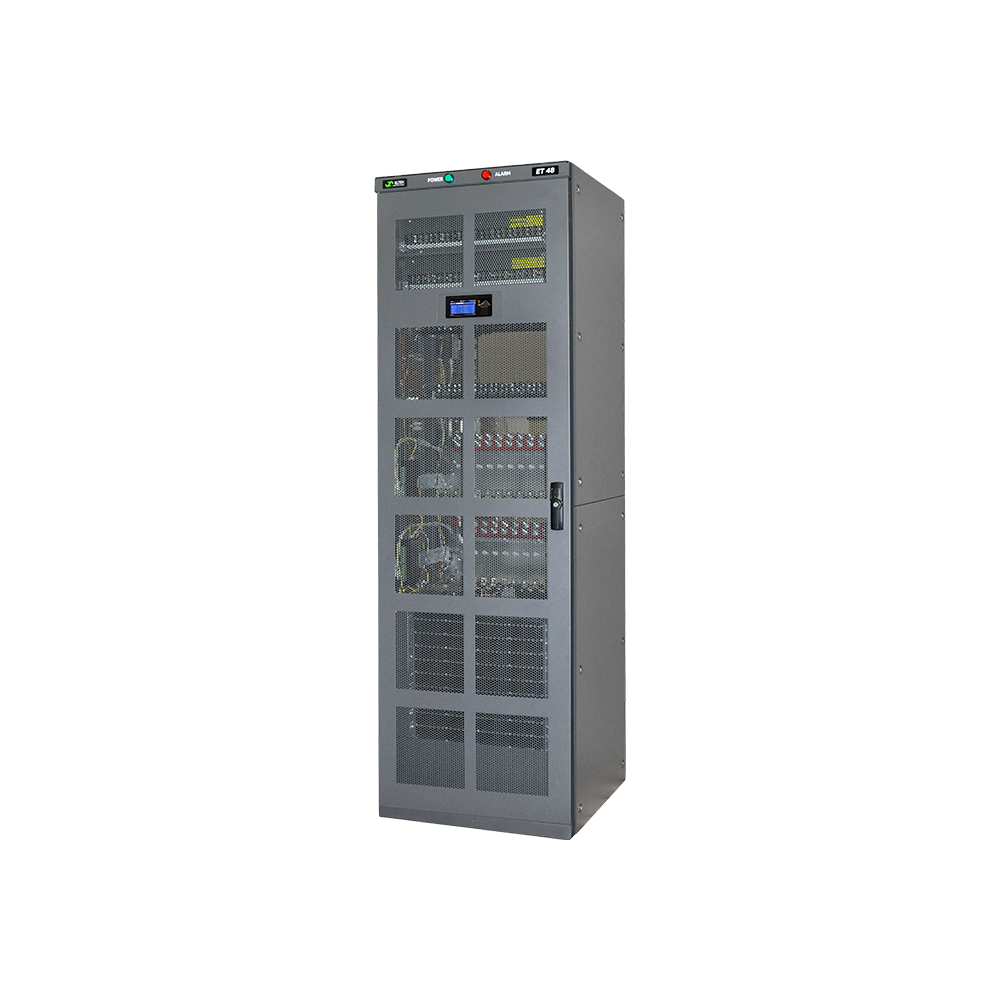

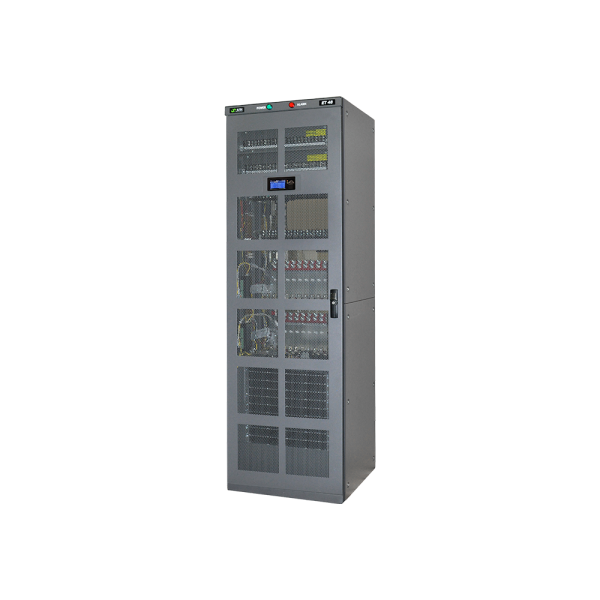

EcoTower 2
Integrating state-of-the-art, high efficiency, switch-mode rectifier technology with Eltek’s feature-rich Smartpack2 control and Smartpack2 Touch monitoring unit, the high-performance EcoTower 2system can be configured to use either single-phase Flatpack2 HE or three-phase DPM-6000 rectifiers.
Overview
EcoTower DC power system
The EcoTower 2delivers up to 2400A and can be equipped with as many as seven DC distribution panels in a single cabinet.
Key features
- Advanced-function Smartpack2 Touch controller
- Uses either Flatpack2 HE or Powerpack rectifiers
- Up to 2400 Amps DC Output
- Front-access design
- Lightweight module components
- Cable management bar
- Internal return bus
- Eight battery connections Low Voltage Load and Battery Disconnects availabeSecondary distribution cabinet available
Technical Data
Input
Voltage AC (operating range)
85 - 300 VAC
Max input AC Voltage
305 VAC
Mains configuration
230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y)
DC Output
Max Power
120000 W
Voltage (adjustable range)
43,5 - 58 VDC
Current (maximum)
2400 ADC
Max voltage
58 VDC
LVD
Batteries
1
Loads
2
Ports
Available ports
Ethernet;RS-282;RS-485
Battery Distribution
Breaker positions up to
8
Breaker rating up to
800 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
182
Breaker rating up to
800 A
LVLD
Yes
Other
Operating temperature
-40 - 55 °C
Storing temperature
-40 - 75 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (inch)
26 x 84 x 24,8 "
Certifications
UL
UL 60950-1
Telcordia approvals
NEBS GR63 CORE Zone 5
Downloads ()
-
EcoTower Datasheet
- Version 1
- 415 kB
- Document number: 370124
