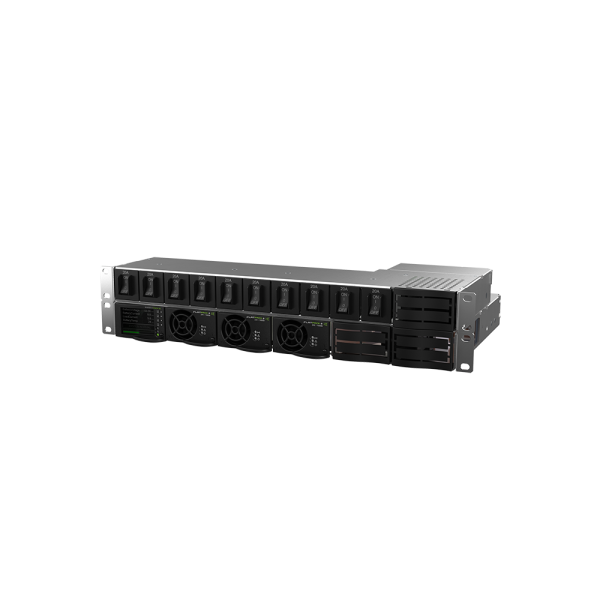

Flatpack S 24V 2U 3R 2-pole
This small power dense system is purely based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifiers and Smartpack S controller ensures safe, reliable and environmental friendly operation.
With its shallow depth and flexibility the Flatpack S 2U 2-pole system fits most cabinets and is thereby excellent as replacement unit.
With its shallow depth and flexibility the Flatpack S 2U 2-pole system fits most cabinets and is thereby excellent as replacement unit.
Overview
2-Pole HE Power System
Key features
- Complete system
- Smartpack S controller hot pluggable
- High efficiency rectifiers hot pluggable
- 2-pole battery distribution
- Pluggable breakers
- Optional LVBD
- 2-pole load distribution
- 10 x 20A MCB positions
- Pluggable breakers
- Adv. control and monitoring
- Embedded ethernet port
- 260mm system depth
- Perfect as replacment unit
- 2U height
- Including distribution
- 19” wide
- Fit standard racks and cabinets
- Global approvals
Technical Data
Input
Max input AC Voltage
305 VAC
Max input DC Voltage
300 VDC
Mains configuration
230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y)
DC Output
Current (maximum)
125 ADC
Max voltage
24 VDC
Max power
3 kW
Battery Distribution
Breaker positions up to
1
Breaker rating up to
100 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
10
Breaker rating up to
20 A
Other
Operating temperature
-40 - 65 °C
Dimensions
Dimensions WxHxD (mm)
482.5 x 89 x 250 mm
Dimensions WxHxD (inch)
19 x 3,5 x 9,84 "
Weight
7 kg
Design Standards
Ingress Protection (IP)
20
