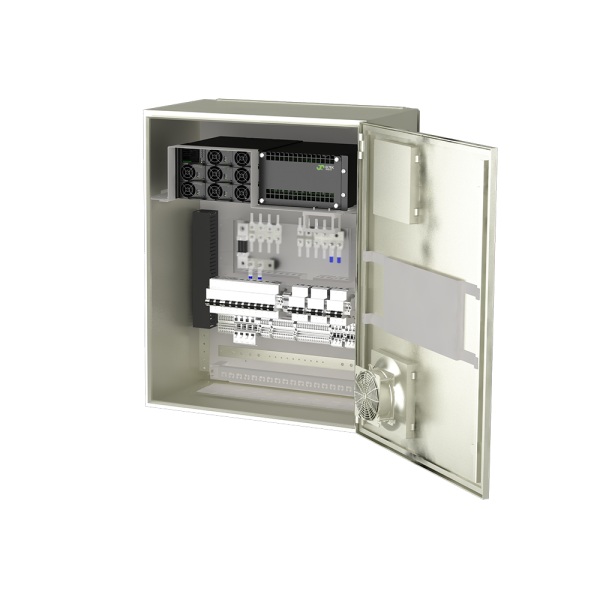

Flatpack S Marine System 8kW, 24VDC Wallmount

Based on the Flatpack S rectifier this is fully modular system for you on board applications that need safe and reliable power
Overview

The system can be powered from AC or DC

This compact DC system offers a flexible and expandable DC power solution. Due to its small size, high efficiency, reliability and wide range of application, the Flatpack S System is the key for future needs.

The controller Smartpack S has built in web and common earth fault monitoring. This DC system is designed to be mounted on wall or on the top of a battery cabinet.

Key features

  • Stand alone or part of centralized system
  • Uninterrupted operation
  • Full overview and control
  • 24 Vdc or 48 Vdc
  • Dual input
  • Modular
Technical Data
Input
Voltage AC (operating range)
85 - 305 VAC
Voltage DC (operating range)
85 - 300 VDC
Max input AC Voltage
305 VAC
Max input DC Voltage
300 VDC
Mains configuration
230VAC Single phase
DC Output
Voltage (adjustable range)
21,5 - 28 VDC
Current (maximum)
333 ADC
Max voltage
28 VDC
Max power
8 kW
DC Load Distribution
Breaker positions up to
5
Breaker rating up to
10 A
LVLD
No
Other
Cooling
Convection
Operating temperature
-40 - 55 °C
Mounting Type
Wall
Dimensions
Dimensions WxHxD (mm)
600 x 750 x 350 mm
Dimensions WxHxD (inch)
23,62 x 29,53 x 13,78 "
Weight
80 kg
Design Standards
Ingress Protection (IP)
44
