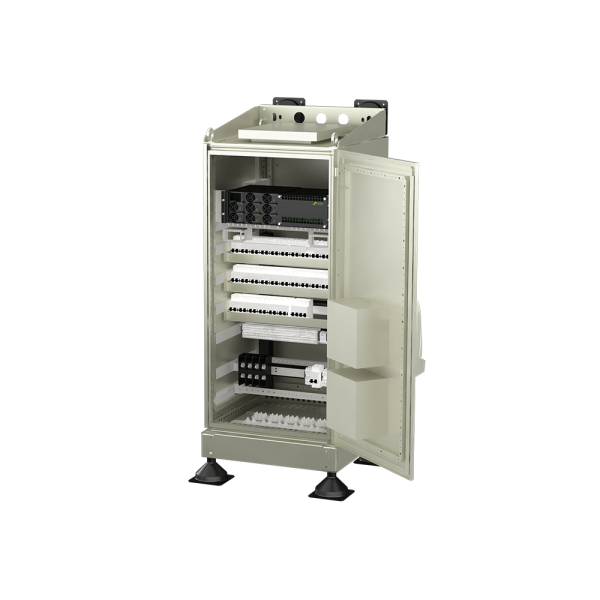

Flatpack S marine system 8kW, 24 Vdc
Based on the Flatpack S rectifier this is fully modular system for you on board applications that need safe and reliable power.
Overview
Flatpack S marine system 8kW, 24 Vdc
This compact DC system offers a flexible and expandable DC power solution. Due to its small size, high efficiency, reliability and wide range of application, the Flatpack S System is the key for future needs.
The controller Smartpack S has built in web and common earth fault monitoring. This DC system is designed to be mounted on wall or on the top of a battery cabinet.
The controller Smartpack S has built in web and common earth fault monitoring. This DC system is designed to be mounted on wall or on the top of a battery cabinet.
Key features
- Stand alone or part of centralized system
- Uninterrupted operation
- Full overview and control
- 24 Vdc or 48 Vdc
- Dual input
- Modular
Technical Data
Input
Voltage AC (operating range)
85 - 305 VAC
Voltage DC (operating range)
85 - 300 VDC
Max input AC Voltage
305 VAC
Max input DC Voltage
300 VDC
Mains configuration
230VAC Single phase
DC Output
Voltage (adjustable range)
21,5 - 28 VDC
Current (maximum)
333 ADC
Max voltage
28 VDC
Max power
8 kW
DC Load Distribution
Breaker positions up to
28
Breaker rating up to
16 A
LVLD
No
Other
Operating temperature
-40 - 55 °C
Insulation
No
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
600 x 1200 x 600 mm
Dimensions WxHxD (inch)
23,62 x 47,24 x 23,62 "
Weight
131 kg
Design Standards
Ingress Protection (IP)
44
