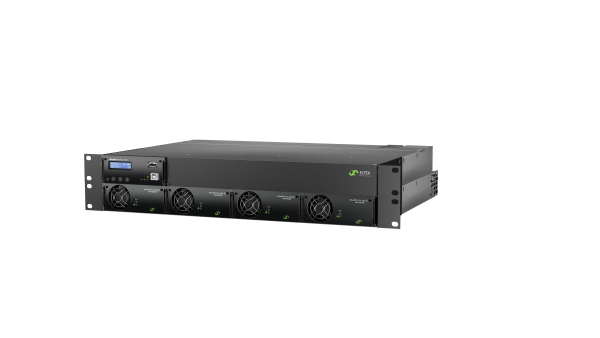

Flatpack2 2U Integrated
The Flatpack2 2U Integrated has been specifically designed to meet the demand for higher density and more compact power solutions.It is suitable for applications needing an expandable, easily serviceable and reliable power supply, fitting within a minimal space.
Overview
Flatpack 2 2U Integrated
Key features
- Highest efficiency in minimum space
- Digital controllers
- Heat management
- Unique connection
- Global approvals
Technical Data
Input
Max input AC Voltage
300 VAC
Mains configuration
230VAC Single phase
DC Output
Current (maximum)
150 ADC
Max voltage
60 VDC
Max power
8 kW
Battery Distribution
Breaker positions up to
2
Breaker rating up to
100 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
6
Breaker rating up to
60 A
LVLD
Yes
AC Load Distribution
Number of breakers
0
Other
Operating temperature
-40 - 65 °C
Storing temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
482 x 89 x 370 mm
Dimensions WxHxD (inch)
19 x 3,5 x 14,6 "
Weight
5 kg
Downloads ()
-
Datasheet Flatpack2 2U Integrated (DS - 200010.DS3 - 1 - 7) - 1.pdf
- Version 7
- 431 kB
- Document number: DS - 200010.DS3
-
Datasheet Flatpack2 2U Integrated - Russian
- Version 7
- 480 kB
- Document number: DS - 200010.DS3
