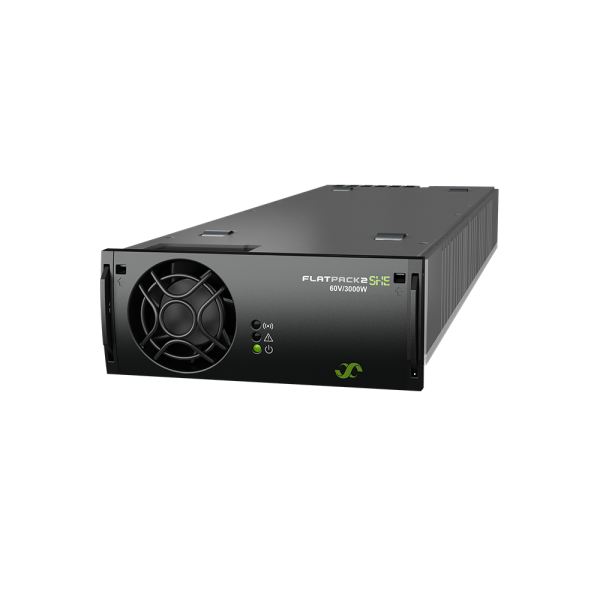

Flatpack2 60/3000 SHE
The Flatpack2 60/3000 Super HE is contributing to setting the new industry standard for efficiency in the DC power market.
Overview
Super High Efficiency (SHE) rectifier for Telecom applications
The Flatpack2 60/3000 Super HE is contributing to setting the new industry standard for efficiency in the DC power market.
With an efficiency up to 97.8% the Super HE is a premium rectifier particularly suitable for markets and applications where the energy is costly. In grid connected applications the payback time is down to 2 years compared to standard HE rectifiers, and in hybrid applications even faster.
The Flatpack2 60/3000 Super HE is fully compatible with Flatpack2 and Flatpack2 HE systems.
With an efficiency up to 97.8% the Super HE is a premium rectifier particularly suitable for markets and applications where the energy is costly. In grid connected applications the payback time is down to 2 years compared to standard HE rectifiers, and in hybrid applications even faster.
The Flatpack2 60/3000 Super HE is fully compatible with Flatpack2 and Flatpack2 HE systems.
Key features
- Super High Efficiency – up to 97.8%
- High power density – 33 w/in3
- Compatible with existing systems
- Global compliance
- Hot pluggable
Technical Data
Input
Voltage AC (operating range)
84 - 264 VAC
DC Output
Max Power
3000 W
Voltage (adjustable range)
54 - 72 VDC
Current (maximum)
50 ADC
Max voltage
72 VDC
Other
Cooling
Single fan
Efficiency
97,8 %
Dimensions
Dimensions WxHxD (mm)
109 x 44 x 327 mm
Dimensions WxHxD (inch)
4,29 x 1,61 x 12,78 "
Weight
2,05 kg
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet Flatpack2 48V HE Rectifiers
- Version 2
- 219 kB
- Document number: PEDM0000133197
