Flatpack2 Outdoor power system
The Flatpack2 outdoor power system provides solution for the most outdoor demanding applications with total power output up to 36kW DC load in IP55 enclosure.
Overview

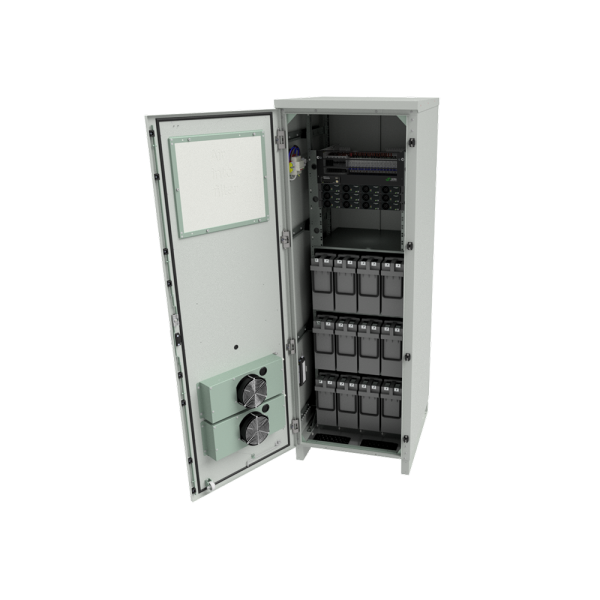

Flatpack2 Outdoor power system
The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability and power output.Together with our Type 4 enclosure platform it is designed for variety of applications and can be tailored to fit specific need with protection class of IP55.
Key features
- Complete outdoor system
- Smartpack R controller
- Advanced control and monitoring through ethernet port
- Super High Efficiency rectifiers
- Hot pluggable modules
- 8x battery breaker positions
- LVBD
- 16x load MCB positions
- LVLD (optional)
- IP55
Technical Data
Input
Current (maximum)
700 ADC
Max input AC Voltage
264 VAC
Max input DC Voltage
57,6 VDC
Mains configuration
230/400VAC 3 phase (Y)
DC Output
Current (maximum)
700 ADC
Max voltage
57,6 VDC
Max power
36 kW
Battery Distribution
Breaker positions up to
8
Breaker rating up to
250 A
LVBD
Yes
DC Load Distribution
LVLD
Yes
Thermal Management Option
Fan Filter
2500W
Other
Cooling
Double fan
Operating temperature
-40 - 45 °C
Storing temperature
-40 - 85 °C
Coating
RAL 7035
Insulation
Yes
Options
Heaters, Clogged filter detection, Filter presence detection, Smoke detector, Humidity detection, Service light, Various cable glands, Various locking cylinders, Battery shelves, Document holder, PC shelf
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
705 x 2068 x 831 mm
Dimensions WxHxD (inch)
27,8 x 81,4 x 32,7 "
Height (Rack space)
2.0 (39U) m
Mounting dimensions
19" / 1U / 831 Width (Inch) / Height (U) / Depth (mm)
Depth
0.77 m (Not including cooling/door option - see datasheet for details)
Width
0.7 m
Weight
168 kg
Design Standards
Ingress Protection (IP)
55
Downloads ()
-
Datasheet Flatpack2 36kW Outdoor power system
- Version 00
- 385 kB
- Document number: PEDM0000646992
