The Industrial bulk feed (IBF) unit is designed for systems with 24-220 Vdc output, from 2-16kW output power

19” power supply system

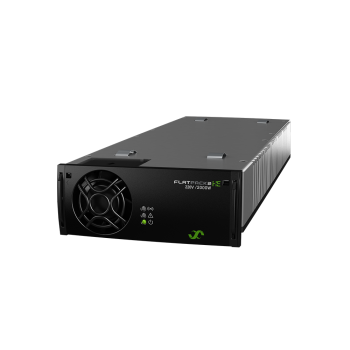

The power core is built around the Flatpack2 rectifiers, anddesigned for applications such as switchgear, telecom, emergency ighting and alarm systems.Its compact design and simple installation makes it a powerful 19”power supply package.

The IBF unit can be used as a stand-alone system or as an integrated unit into our IBB systems together with our Flatpack2 Rectifiers

Key features

  • Compact design
  • Simple installation
  • 85-300V AC input
  • House up to 8 rectifiers
  • 2-16kW output
  • Bulk feed output
  • Max 300A DC output
  • Graphical 3,2 TFT display
  • Ethernet for remote
  • 6 digital inputs
  • 6 relay outputs
  • SNMP protocol with trap
  • Hot pluggable
Technical Data
Max input AC Voltage
275 VAC
Mains configuration
230/400VAC 3 phase (Y)
DC Output
Max Power
16000 W
Current (maximum)
300 ADC
Max voltage
297 VDC
Max power
16 kW
Operating temperature
-40 - 45 °C
Dimensions WxHxD (mm)
482 x 267 x 432 mm
Dimensions WxHxD (inch)
18,98 x 10,51 x 17,01 "
Mounting dimensions
19" / 6U / 432 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
