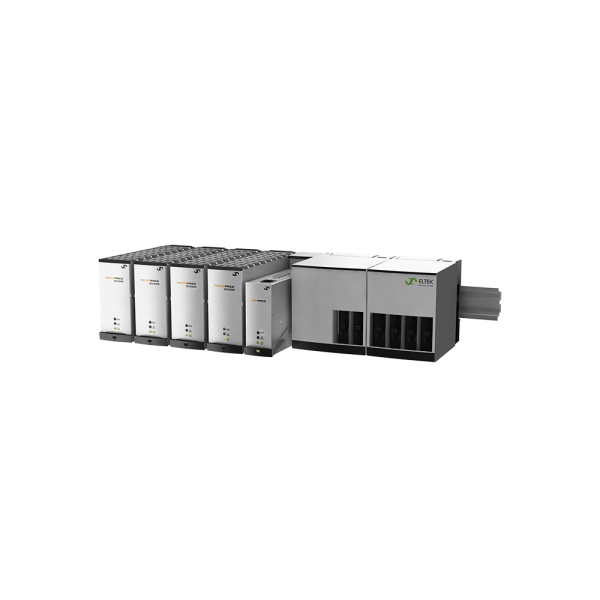

Micropack system
The Micropack system is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements. Use as stand alone or in a flexible off the shelf configurable system.
The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
Overview
Micropack system
The Micropack system is convection cooled, designed for less power hungry applications, but still with system functionality options to match any requirements. Use as stand alone or in a flexible off the shelf configurable system.
The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
The Micropack Power System extends your network one step further. With load ranges typically between 120W and 1000W, and in 12, 24 and 48V options, the system is perfect for a great variety of applications.
Key features
- Compact and shallow (149 mm deep)
- Din rail mountable
- On-site configurable
- Off the shelf delivery
- Stand-alone option (w/alarm relay)
- Plug-in breakers or bulk output
- Accepts 85 – 300V AC/DC input
- 12, 24-30, 48 Vdc output versions
- Ethernet for remote and local monitoring and control via WEB Browser
- SNMP protocol with TRAP, SET and GET on Ethernet. Email of TRAP alarms
- 3 digital programmable relay outputs 3 programmable multipurpose inputs
Technical Data
Input
Max input AC Voltage
300 VAC
Max input DC Voltage
300 VDC
Mains configuration
230VAC Single phase
DC Output
Voltage (adjustable range)
12 - -48 VDC
Current (maximum)
40 ADC
Max voltage
-48 VDC
Max power
1 kW
Battery Distribution
Breaker positions up to
2
Breaker rating up to
30 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
4
Breaker rating up to
15 A
Other
Operating temperature
-40 - 65 °C
Storing temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
231 x 89 x 149 mm
Dimensions WxHxD (inch)
9,09 x 3,5 x 5,87 "
Weight
292 kg
Downloads ()
-
Eltek Power Utilities Smart Powering Solutions Brochure
- Version 1
- 5693 kB
- Document number: MMP30.0007.BR3
-
Datasheet Micropack System
- Version 9
- 411 kB
- Document number: 241120.90X.DS3
