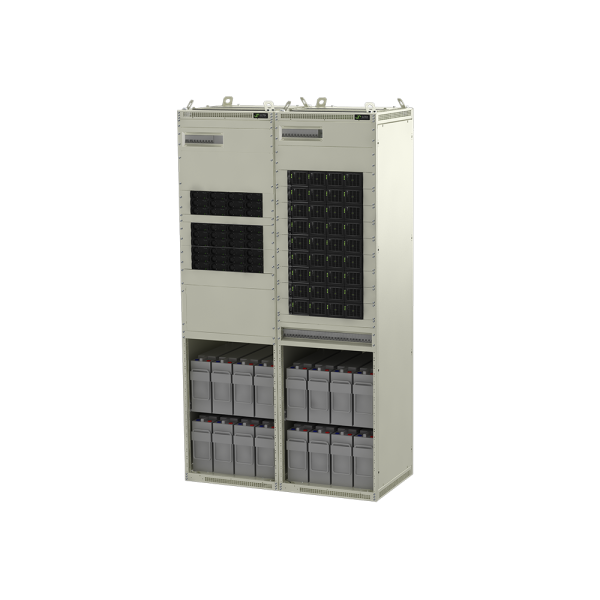

MiniCPS 65kW power system

The MiniCPS indoor system combines both AC and DC feeds into one common unit, simultaneously delivering AC backup power for 230/400 Vac loads, 48 Vdc power for DC loads and battery charging.

Modular Architecture

‚ÄčThe system simultaneously provides power for AC and DC loads. During a mains outage, the system seamlessly continues feeding both AC and DC loads using energy stored in the battery, until either the main, or secondary, AC source is available.

The modular architecture, industry-leading efficiency, compact size, innovative design, and comprehensive monitoring and control features, provide significant benefits over the current industry standard.

Key features

  • 230 Vac1-phase input
  • 400 Vac 3-phase (Y) input
  • Dual source input
  • 1-phase and 3-phase output (if 3-phase input)
  • 48 Vdc output
  • Max 75kVA AC output
  • Max 33kW DC output
  • 1-pole (L) MCB AC distribution option
  • 2-pole (L+N) MCB AC distribution option
  • -48 Vdc MCB distribution option
  • Surge protection on both input and output
  • Built in source transfer technology
  • Hot pluggable power modules
  • Smartpack2 control and monitoring
  • Patented technology
Technical Data
Voltage AC (operating range)
260 - 460 VAC
Max input AC Voltage
400 VAC
Mains configuration
230VAC Single phase;230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
400 VAC
Max power (kVA/kW)
75 / 60
Configurable inputs
Number of configurable inputs
DC Output
Current (maximum)
687,5 ADC
Max voltage
57,6 VDC
Max power
33 kW
Available ports
Battery Distribution
Breaker positions up to
Breaker rating up to
600 A
DC Load Distribution
Breaker positions up to
Breaker rating up to
100 A
AC Load Distribution
Number of breakers
Breaker rating, up to
63 A
Operating temperature
-20 - 45 °C
Maximum battery trays
Mounting Type
Dimensions WxHxD (mm)
1200 x 2200 x 600 mm
Dimensions WxHxD (inch)
47,4 x 78,8 x 23,7 "
250 kg
Design Standards
Ingress Protection (IP)
