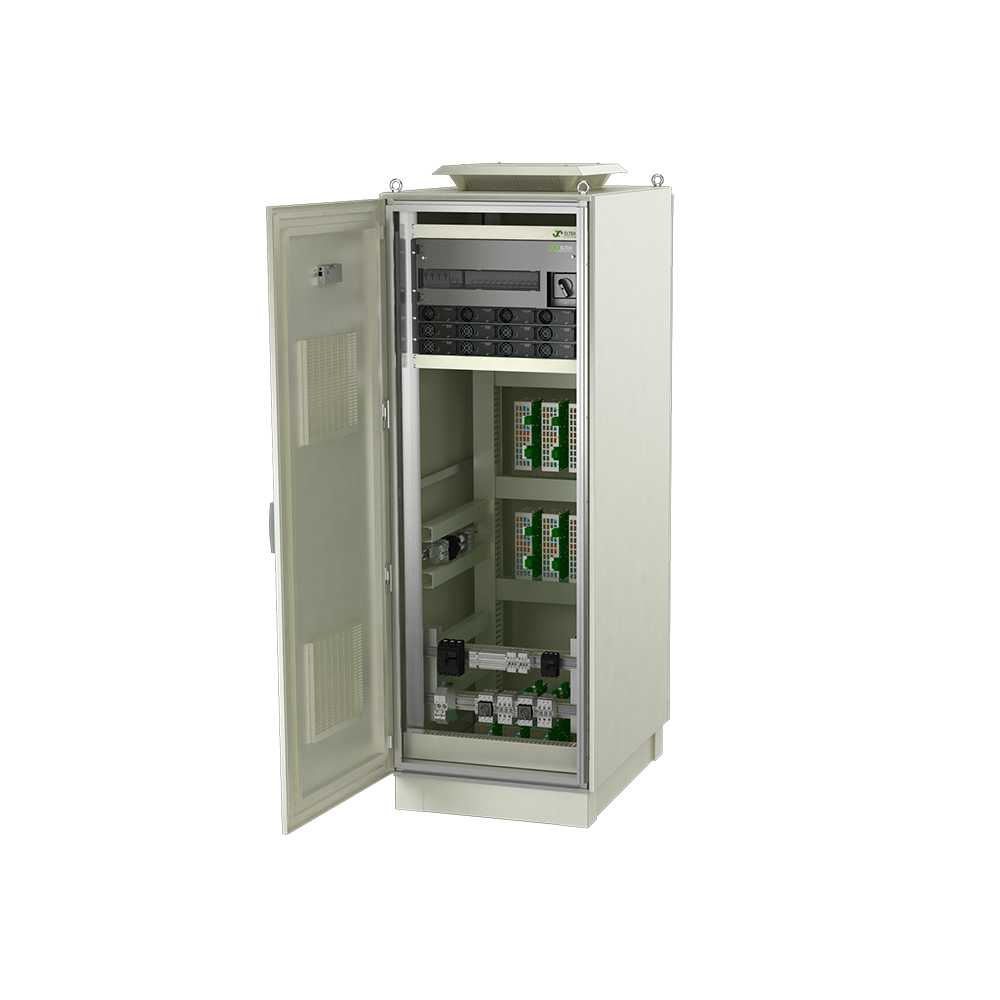

Rectiverter 18 kVA, Marine UPS 3ph MB
The Rectiverter power module combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 VAC or 440 VAC loads, and 110 VDC power for battery charging.AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 18 kVA with possibility to set recharge values for battery banks up to max 14.4 kW
Overview
Rectiverter 18 kVA, Marine UPS 3ph MB
RECTIVERTER MODULE
The 3 port converter simultaneously provides power for AC loads and battery charging. During mains outage the Rectiverter 110/1200 HE feeds AC loads using energy stored in the battery. The modular architecture, industry-leading efficiency, compact size, innovative design and comprehensive monitoring and control features provide significant benefits over the current industry standard.
The 3 port converter simultaneously provides power for AC loads and battery charging. During mains outage the Rectiverter 110/1200 HE feeds AC loads using energy stored in the battery. The modular architecture, industry-leading efficiency, compact size, innovative design and comprehensive monitoring and control features provide significant benefits over the current industry standard.
Key features
- 230 OR 440 VAC INPUT
- DUAL A &
- B AC FEED
- 3 PHASE INPUT/OUTPUT
- MAX 18 KVA AC OUTPUT
- GROUND FAULT ALARM (RCR)BUILT IN MANUAL BYPASS SWITCH
- BUILT IN TRANSFER TECHNOLOGY
- 150% OVERLOAD CAPABILITY, 15S
- 600% QUICK TRIP CURRENT, 20MS
- HOT PLUGGABLE
- SMARTPACK 2 CONTROLLER
- DNV DESIGN COMPLIANCE
- PATENTED HE TECHNOLOGY
Technical Data
Input
Current (maximum)
150 ADC
Voltage AC (operating range)
185 - 523 VAC
Voltage DC (operating range)
90 - 145 VDC
Max input AC Voltage
523 VAC
Max input DC Voltage
145 VDC
Mains configuration
230VAC 3 phase (Δ);440V AC 3 phase (Δ)
AC Output
Voltage (adjustable)
200 - 240 VAC
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
18 / 14,4
DC Output
Voltage (adjustable range)
97 - 145 VDC
Current (maximum)
133,3 ADC
Max voltage
145 VDC
Max power
14,4 kW
Battery Distribution
Breaker positions up to
1
Breaker rating up to
250 A
AC Load Distribution
Number of breakers
1
Breaker rating, up to
50 A
Other
Cooling
Single fan
Efficiency
96 %
Operating temperature
-40 - 45 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
605 x 1808 x 805 mm
Dimensions WxHxD (inch)
23,8 x 71,2 x 31,7 "
Weight
410 kg
Design Standards
Ingress Protection (IP)
54
