Rectiverter Integrated/Standalone 3kVA 1phase

The Rectiverter integration/standalone system can be used in applications where a 230/115 Vac backup is needed in parallel with the 48 Vdc backup.

Overview

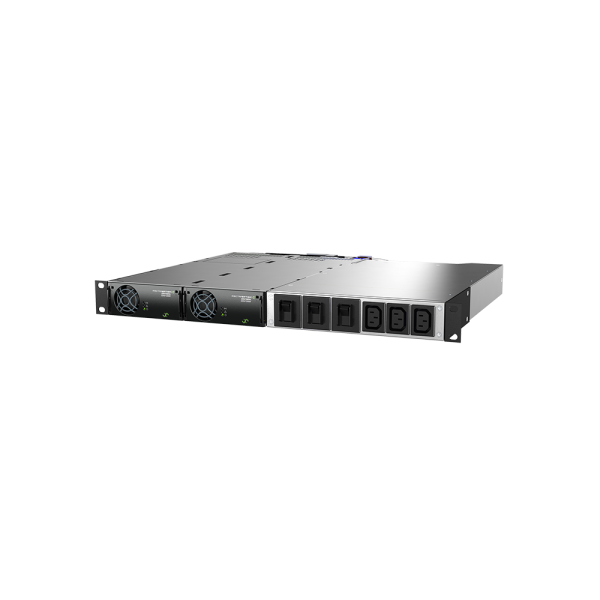

Rectiverter Integrated/Standalone 3kVA 1phase

It can also be used as a standalone system connected to any available 48 Vdc. The system can be integrated into an Eltek DC system and connected to the same controller as the 48 Vdc system.

The total output power for both AC and DC output is limited to max 4kW AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 3kVA.

Key features

  • 230 Vac single phase input
  • 48 or 110 Vdc input/output
  • Single phase output
  • Max 3kVA AC output
  • Max 2,4kW DC output
  • 2 pole AC distribution
  • 3*IEC sockets on front
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Operates in parallell with Flatpack2
Technical Data
Input
Current (maximum)
64 ADC
Max input AC Voltage
240 VAC
Max input DC Voltage
58 VDC
Mains configuration
230VAC Single phase
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
3 / 2,4
DC Output
Max Power
2400 W
Current (maximum)
50 ADC
Max voltage
58 VDC
Max power
2,4 kW
AC Load Distribution
Number of breakers
3
Breaker rating, up to
10 A
Other
Operating temperature
-40 - 55 °C
Dimensions
Dimensions WxHxD (mm)
482 x 44 x 395 mm
Dimensions WxHxD (inch)
18,98 x 1,73 x 15,55 "
Mounting dimensions
19" / 1U / 395 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
20
