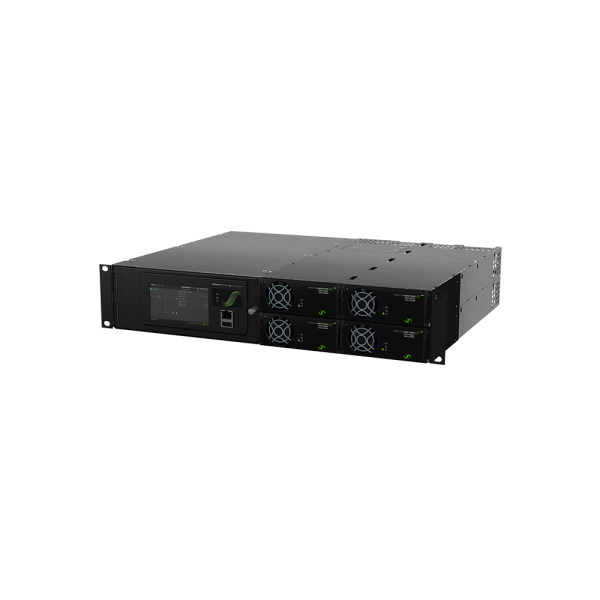

Rectiverter Integrated 2U, 110VDC 6kVA 1ph

The Rectiverter 2U 19” Integrated System can be used as a standalone system with bulk AC & DC outputs in industrial applications where a 230/115 VAC and 110 VDC backup is needed.
Request a quote Contact us
Overview

Rectiverter Integrated 2U, 110VDC 6kVA 1ph

The total output power for both AC and DC is limited to a total 8 kW. AC and DC output limits can be set according to the connected load, where the limitation for AC load is set to max 6 kVA and for DC load to max 4,8 kW.As additional options, the measuring and signaling can be widely extended with the I/O Monitor or Fleximonitor CAN nodes.

Key features

  • Compact design and simple installation
  • Single phase 230 or 115 VAC input/output
  • 110VDC input/output
  • House up to 4 rectiverter modules
  • 8kW total AC + DC output
  • Max 6 kVA AC output
  • Max 4,8 kW DC output
  • Bulk feed outputs AC + DC
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 touch controller
  • Programmable multipurpose inputs and outputs
Technical Data
Input
Current (maximum)
50 ADC
Max input AC Voltage
275 VAC
Max input DC Voltage
145 VDC
Mains configuration
230VAC Single phase
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
6 / 4,8
DC Output
Max Power
4800 W
Voltage (adjustable range)
97 - 145 VDC
Current (maximum)
44,4 ADC
Max voltage
145 VDC
Max power
4,8 kW
Other
Cooling
Single fan
Operating temperature
-40 - 55 °C
Dimensions
Dimensions WxHxD (mm)
482 x 89 x 400 mm
Dimensions WxHxD (inch)
19 x 3,5 x 15,7 "
Mounting dimensions
19" / 2U / 400 Width (Inch) / Height (U) / Depth (mm)
Weight
9,4 kg
