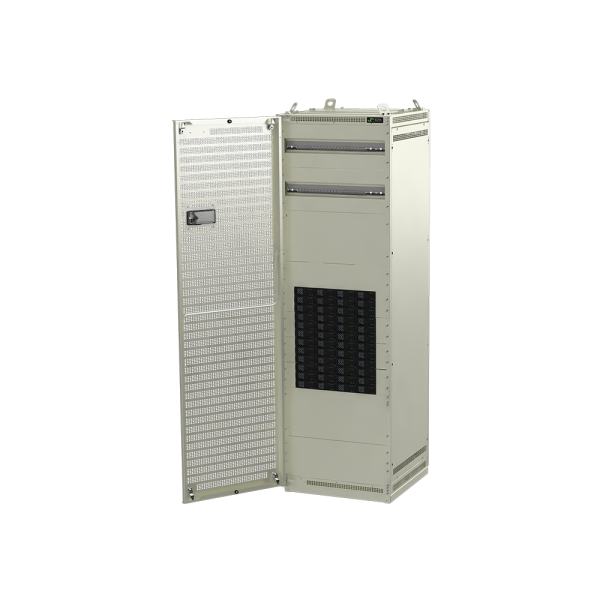

Rectiverter Scalable System 18-72 kVA

The scalable Rectiverter indoor system provides AC backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for battery charging and optional DC loads
Request a quote Contact us
Overview

Rectiverter Scalable System 18-72 kVA

The systems are available in three configurations with maximum AC output power up to 36, 54 or 72 kVA. AC distributions are integrated in the cabinet with possible 3 phase or 1 phase load breakers.

In combination with AC output the system can also feed DC loads up to 57,6 kW with built in DC distribution for -48 VDC loads.

Key features

  • 400 VAC 3 phase (Y) input
  • 400 VAC 3 phase (Y) output
  • 48 VDC input/output
  • Max 72 kVA / 57,6 kW AC output
  • Max 57,6 kW DC output
  • AC distribution
  • DC distribution option
  • Manual bypass option
  • Up to 4 battery strings
  • Built in transfer technology
  • 150% overload capability, 15S
  • 600% quick trip current 20 ms
  • Hot pluggable
  • Smartpack2 controller
  • Operates in paralell with Flatpack2 rectifiers
  • Global compliance
  • Patented HE technology
Technical Data
Input
Current (maximum)
1536 ADC
Voltage AC (operating range)
320 - 475 VAC
Voltage DC (operating range)
40 - 58 VDC
Max input AC Voltage
475 VAC
Max input DC Voltage
58 VDC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
415 VAC
Max power (kVA/kW)
72 / 57,6
DC Output
Voltage (adjustable range)
43 - 58 VDC
Current (maximum)
1200 ADC
Max voltage
58 VDC
Max power
57,6 kW
Battery Distribution
Breaker positions up to
4
Breaker rating up to
1600 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
30
Breaker rating up to
120 A
LVLD
No
AC Load Distribution
Number of breakers
30
Breaker rating, up to
63 A
Other
Cooling
Single fan
Dimensions
Dimensions WxHxD (mm)
600 x 2000 x 600 mm
Dimensions WxHxD (inch)
23,7 x 78,8 x 23,7 "
Mounting dimensions
19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
Weight
300 kg
Design Standards
Ingress Protection (IP)
20
