Smartpack R Controller

Future fit power. It is a simple idea with tremendous effect: Replace your old first-generation Smartpack controller with the Smartpack R to make your power system ready for a high-speed, high-capacity and connected tomorrow. This retrofit will bring your existing power system in line with current requirements, prolong its lifetime and thereby reduce both the lifetime operating costs and the need for new investments in power.
Overview

A smarter retrofit controller

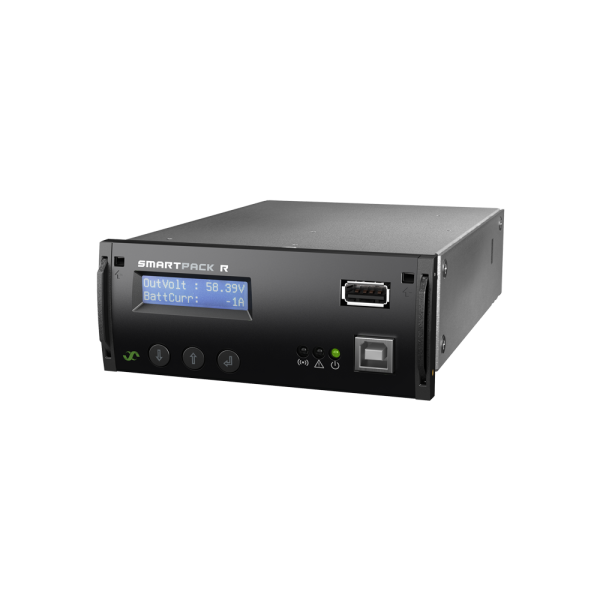

The Smartpack R is a replacement for the first generation Smartpack 1 controllers, manufactured and sold between 2005 to 2018, meant first and foremost for retrofitting of mid-range Eltek power systems from that period. It has the same form factor, i.e. the same dimensions and connections as the original Smartpack 1 and is fully backwards compatible.

Key features

  • Backwards compability
  • Form, fit, function compatible with legacy eltek smartpack controllerEthernet
  • IPv4/v6, responsive html5 web interface, snmpv3, modbus tcp, radius, security penetration testedSystem capabilities
  • All eltek power modules, including rectiverters and can nodes such as fleximonitorTelecom site monitoring
  • Serial ports/usb: usb b-type, usb a-type host for dongles, wifi, 4g modems, bluetooth, flash drives, etc. rj-11 w/rs-232/rs-485 w/ modbus rtu slave for scada and modbus rtu master for data collection from 3rd party equipment with generic configurable protocol for smartmeters, etc. and fixed protocols for li-ion batteries etc.
Technical Data
Input
Voltage DC (operating range)
10 - 75 VDC
Electrical
Power consumption
3 W
System connections
Voltage
1
Current
1
Battery
(4) block
Output
Output
Form-C Dry Contact (NO-C-NC) Max 75V/2A/60W
Configurable inputs
Number of configurable inputs
6
Digital configurations
#1-6: Open/Closed
Number of analog configurations
6
Analog configurations
#1-2: Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) #3-6: Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) Support: Temperature sense w/ NTC probe
LVD
Batteries
1
Loads
2
Ports
Available ports
CAN;Ethernet;RS-282;RS-485;USB
Other
Operating temperature
-20 - 65 °C
Storing temperature
-40 - 70 °C
Dimensions
Dimensions WxHxD (mm)
109 x 44 x 156 mm
Dimensions WxHxD (inch)
4,3 x 1,75 x 6,1 "
Software functionality
Remote Monitoring
DHCP DHCPv6 SNMP v1, v2c and v3 MODBUS TCP/RTU Slave Modem Call-back & SMS Alarm for GSM modems IPv4 IPv6 (static-link) IPv6 (stateless autoconfig) IPv6 (statefull autoconfig) - DHCPv6 SNTP - clock syncronizing SMTP/email custom reports as .csv attached SMTP Secure RADIUS (single-sign on) FTP - file transfeer (SW updates, log's download, etc) FTPS - FTP secure UDP pComm for PowerSuite (Windows Config/Monitoring Tool) HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen) HTTPS (TLS enqrypted web interface)
Rectifier Functions/Monitoring
Efficiency Manager HE Priority Slow/Fast/Li-Ion voltage ramp-up Power Ramp Up Adjustable Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Start-Up delay Rectifier Current Monitoring (2-level Alarm) Rectifier Error Monitoring (2-level Alarm) Rectifier Communication Error Monitoring (2-level Alarm) Rectifier Usage Monitorting (2-level Alarm) Rectifier Usage BT Spec Monitorting (2-level Alarm) Rectifier Current Share Error Monitorting (2-level Alarm) Rectifier Input Air Temperature Highest Monitorting (2-level Alarm) Rectifier Qty with Low Mains Monitorting (2-level Alarm)
Rectiverter Functions/Monitoring
Adjustable output frequency Adjustable output AC voltage Adjustable frequency hold-in range/hysteresis for inverter mode Adjustable DC Current Limit Inventory overview Auto adressing/plug-and play Manuel adesssing override Dynamic output OVS Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm) Rectiverter AC Output Frequency Monitoring (4-level Alarm) Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm) Rectiverter DC Output Current Total Monitoring (2-level Alarm) Rectiverter Error Monitoring (2-level Alarm) Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm) Rectiverter AC Capacity Monitoring (2-level Alarm) Rectiverter DC Capacity Monitoring (2-level Alarm) Rectiverter Temperature (4-level Alarm) Rectiverter Communication Error Monitoring (2-level Alarm)
Solar Charger Functions/Monitoring
Charger module built in MPPT Voltage Input Value Solar Charger Current Monitoring (2-level Alarm) Solar Charger Error Monitoring (2-level Alarm) Solar Charger Communication Error Monitoring (2-level Alarm) Solar Charger Panel Unbalance Monitorting (2-level Alarm)
Wind Charger Functions/Monitoring
Configurable Power-Voltage Characteristics Curve in charger module Wind Charger Current Monitoring (2-level Alarm) Wind Charger Error Monitoring (2-level Alarm) Wind Charger Communication Error Monitoring (2-level Alarm)
Battery Management/Monitoring
Temperature Compensation Symmetry - Midpoint measurement 12V, 24V, 30V, 36V Symmetry - Block measurement 6V, 12V, 24V Auto Boost Charge Interval Boost Charge Follow-up Boost Charge Equalize Charge, manual & inerval Temperature Compensation during Boost & Equalize Charge Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec. Battery Discharge Health (SoH) testing - simple, based on backup time requirement Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme Battery Test logging Battery DoD Cycle logging Battery Cycle counter logging Battery Run time logging Battery LifeTime Prediction based on temp ranges Battery Discontinuance Testing -simple or advanced (based on shunt in each string) Analog Battery Float charge regulation based on input voltage signal Battery Voltage Monitoring (4-level alarm) Battery Current Monitoring (4-level alarm) Highest of multiple battery temperature Monitoring (4-level alarm) Individual Battery Temperatures (4-level alarm) Battery SoC Monitoring (2-level Alarm), % or Ah Accumulated Ah Charged/Discharged Monitoring (2-level alarm) Failed Battery Test Monitoring (1-level alarm) Individual Battery Fuse Monitoring (1-level alarm) Individual Battery String Current Monitoring (2-level alarm) FIAMM SONICK Battery BMS communication SAFT Evolion Battery BMS communication Narada Battery BMS communication Leoch Battery BMS communication Sacred Sun Battery BMS Battery BMS communication Northstar ACE Battery(Gateway) communication Eltek Generic Battery communiction protocol LVBD (voltage, temperature, mains controllable)
Mains/Grid Monitoring
Phase Failure Monitoring (2-level Alarm) Phase Voltage Monitoring (4-level Alarm) Frequency Monitoring (2-level Alarm)* Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)* Power Factor Monitoring 3 phases (2-level Alarm)* Mains Current Monitoring 3 phases (2-level Alarms)* *Require AC Mains Monitor CAN Node or Smartmeter communication
Load Management/Monitoring
LVLD Coldstart LVLD Load Fuse Monitoring (1-level alarm) Load Current Monitoring (2- level alarm) Individual Load Fuse Monitoring (1-level alarm) Individual Load Current Monitoring (2- level alarm) Individual Load Power Monitoring Individual Load Energy logging Individual Load Energy cost logging
Programmable Logic
OR function of multiple alarms/events AND function of multiple alarms/events Inversion of logical signals Task Scheduler (hourly, daily, weekly, monthly) of any commands/events Alarm Grouping
Hybrid Functionality/Monitoring
SoC Controlled Gen Set start/stop Voltage Conrolled Gen Set start/stop Daily Schedule Controlled Gen Set start/stop Soruce Limitation for Gen Set Testing Priorty Solar Charger Priority Wind Charger Fuel Tank level Monitoring (2-level Alarm)
Available Logs
Energy Logging (mains, rectifier, rectiverter, battery, load) - hourly, dailiy, weekly Data Logging (10 parameters, various trigger intervals and event triggers) BHL/HAA-loggs Account login log Change log Inventory Export
Climate Control & Monitoring
Fan control, linear speed vs. temp / max speed* Fan Speed Deviation Monitoring* Humidity Reduction* Intervall Preasure Test* *Require I/O Montior T3
Various Controllers
Security setup (open/close UDP/TCP ports) User Account Setup Programmable Buzzer Remote Software Upgrade - maincontroller over IP Remote Software Upgrade - CAN Nodes through maincontroler via FTP Controller/Power Module LED Test Programmable Viritual Inputs XML Configurations - full parameter flexibility XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
