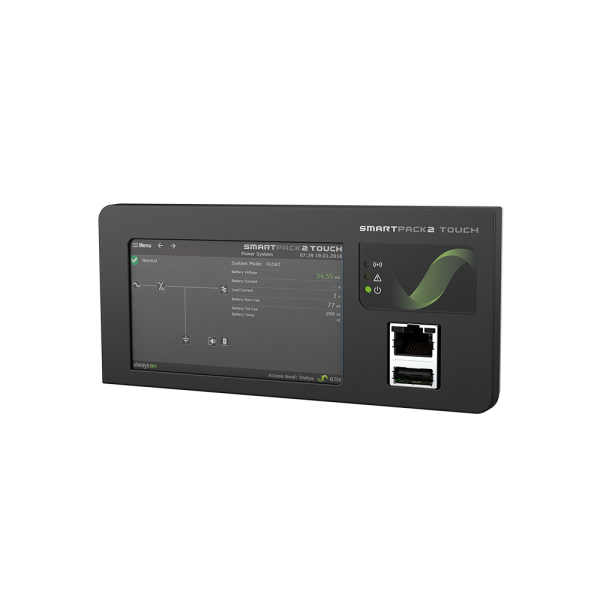

Smartpack2 Touch
Full control at your fingertips! The new Smartpack2 Touch raw power with a touch of elegance.
Overview
Distributed control system
New features and look on a well-tested control platform Eltek’s new Smartpack2 Touch controller offers much more than its delicately designed exterior suggests. It will be for power system managers what the smart phone is for people
in general: so powerful and yet so simple to use it becomes an essential part of daily life.
The Smartpack2 Touch is the next generation controller, and its the only controller that you need. It supports all your equipment, Eltek, Delta or 3rd party, and it has the highest security rating.
in general: so powerful and yet so simple to use it becomes an essential part of daily life.
The Smartpack2 Touch is the next generation controller, and its the only controller that you need. It supports all your equipment, Eltek, Delta or 3rd party, and it has the highest security rating.
Key features
- Touch screen - High contrast, high resolution color touch display for easy user-menu navigation
- 2x can bus for internal power system communication, 2x usb hosts, 2x ethernet, rs-232 &
- rs-485 serial ports for 3rd party equipment monitoring
- Visual leds and buzzer for local alarms (major, minor, power on)
- Monitoring and control via responsive web interface on ethernet ports
- SNMP protocol: Comprehensive content on set, get and traps
- 6 programmable outputs for “traditional” remote monitoring.
- Expandable outputs with I/O monitor can nodes
- 6 programmable multipurpose inputs (“digital inputs” or analog signals).
- Expandable inputs with i/o monitor can nodes
- Comprehensive logging
- Backup of critical control features in basic unit
- Automatic battery monitoring and test
- Battery lifetime indication
- Battery used and remaining capacity (ah or %)
- User defined alarm grouping(boolean logic for grouped alarms)
- Uploading and downloading of configuration files
- Comprehensive generator/hybrid/dc solar system control and monitoring features
- And much more..
Technical Data
Input
Voltage DC (operating range)
20 - 420 VDC
Electrical
Power consumption
5.4 W
MTBF
1300000 h
System connections
Voltage
1 or 3
Current
1 or 2
Battery
(2) midpoint
Load
Ground fault detection
Output
Output
Form-C
Dry Contact (NO-C-NC)
Max 75V
Configurable inputs
Number of configurable inputs
6
Digital configurations
#1-6: Open/Closed
Number of analog configurations
3
Analog configurations
Temperature: NTC probe
Analog:+/-0-10V
4-20mA current sensing
LVD
Loads
2
Ports
Available ports
CAN;Ethernet;I2C;RS-282;RS-485;USB
Display
Size
4,4 "
Resolution
480 x RGB x 272
Battery Distribution
LVBD
Yes
DC Load Distribution
LVLD
Yes
Other
Operating temperature
-4 - 149 °F
Storing temperature
-40 - 185 °F
Insulation
Yes
Dimensions
Dimensions WxHxD (mm)
174 x 78 x 41 mm
Dimensions WxHxD (inch)
6,8 x 3,1 x 1,6 "
Design Standards
Ingress Protection (IP)
22
Certifications
Marine
IEC 60945/DNVGL CG-0339
Software functionality
Remote Monitoring
DHCP
DHCPv6
SNMP v1, v2c and v3
MODBUS TCP/RTU Slave
Modem Call-back & SMS Alarm for GSM modems
pComm (Windows Config/Monitoring Tool) via Modem & IP
IPv4
IPv6 (static-link)
IPv6 (stateless autoconfig)
IPv6 (statefull autoconfig) - DHCPv6
SNTP - clock syncronizing
SMTP/email custom reports as .csv attached
SMTP Secure
RADIUS (single-sign on)
FTP - file transfeer (SW updates, log's download, etc)
FTPS - FTP secure
UDP pComm for PowerSuite (Windows Config/Monitoring Tool)
HTTP (Webpages with all functions/features/monitoring - responsive design for PC screen, tablet screen, smartphone screen)
HTTPS (TLS enqrypted web interface)
Rectifier Functions/Monitoring
Efficiency Manager
HE Priority
Slow/Fast/Li-Ion voltage ramp-up
Power Ramp Up
Adjustable Current Limit
Inventory overview
Auto adressing/plug-and play
Manuel adesssing override
Dynamic output OVS
Start-Up delay
Rectifier Current Monitoring (2-level Alarm)
Rectifier Error Monitoring (2-level Alarm)
Rectifier Communication Error Monitoring (2-level Alarm)
Rectifier Usage Monitorting (2-level Alarm)
Rectifier Usage BT Spec Monitorting (2-level Alarm)
Rectifier Current Share Error Monitorting (2-level Alarm)
Rectifier Input Air Temperature Highest Monitorting (2-level Alarm)
Rectifier Qty with Low Mains Monitorting (2-level Alarm)
RectifierGroup Monitoring (A+B Systems)
Individual Group Current Share control (A+B Systems)
Individual Group Charge Regulation (A+B Systems)
Rectiverter Functions/Monitoring
Adjustable output frequency
Adjustable output AC voltage
Adjustable frequency hold-in range/hysteresis for inverter mode
Adjustable DC Current Limit
Inventory overview
Auto adressing/plug-and play
Manuel adesssing override
Dynamic output OVS
Rectiverter AC Output Voltage Phase 1, 2 & 3 Monitoring (4-level Alarm)
Rectiverter AC Output Frequency Monitoring (4-level Alarm)
Rectiverter AC Output Current Phase 1, 2 & 3 Monitoring (2-level Alarm)
Rectiverter DC Output Current Total Monitoring (2-level Alarm)
Rectiverter Error Monitoring (2-level Alarm)
Rectiverter AC Current Share Error Phase1, 2 & 3 Monitoring (2-level Alarm)
Rectiverter AC Capacity Monitoring (2-level Alarm)
Rectiverter DC Capacity Monitoring (2-level Alarm)
Rectiverter Temperature (4-level Alarm)
Rectiverter Communication Error Monitoring (2-level Alarm)
Solar Charger Functions/Monitoring
Charger module built in MPPT
Voltage Input Value
Solar Charger Current Monitoring (2-level Alarm)
Solar Charger Error Monitoring (2-level Alarm)
Solar Charger Communication Error Monitoring (2-level Alarm)
Solar Charger Panel Unbalance Monitorting (2-level Alarm)
Wind Charger Functions/Monitoring
Configurable Power-Voltage Characteristics Curve in charger module
Wind Charger Current Monitoring (2-level Alarm)
Wind Charger Error Monitoring (2-level Alarm)
Wind Charger Communication Error Monitoring (2-level Alarm)
Battery Management/Monitoring
Temperature Compensation
Symmetry - Midpoint measurement 12V, 24V, 30V, 36V, 54V, 108, 110V, 168V
Symmetry - Double midpoint measurement
Symmetry - Block measurement 6V, 12V, 24V
Symmetry - Cell measurement 2V, 6V
Auto Boost Charge
Interval Boost Charge
Follow-up Boost Charge
Equalize Charge, manual & inerval
Temperature Compensation during Boost & Equalize Charge
Battery Discharge Health (SoH) testing - normal, based on discharge batt. Spec.
Battery Discharge Health (SoH) testing - simple, based on backup time requirement
Battery Discharge Health (SoH) testing - manual, interval, or alternate scheme
Battery Test logging
Battery DoD Cycle logging
Battery Cycle counter logging
Battery Run time logging
Battery LifeTime Prediction based on temp ranges
Battery Discontinuance Testing -simple or advanced (based on shunt in each string)
Analog Battery Float charge regulation based on input voltage signal
Battery Voltage Monitoring (4-level alarm)
Battery Current Monitoring (4-level alarm)
Highest of multiple battery temperature Monitoring (4-level alarm)
Individual Battery Temperatures (4-level alarm)
Battery SoC Monitoring (2-level Alarm), % or Ah
Accumulated Ah Charged/Discharged Monitoring (2-level alarm)
Failed Battery Test Monitoring (1-level alarm)
Individual Battery Fuse Monitoring (1-level alarm)
Individual Battery String Current Monitoring (2-level alarm)
FIAMM SONICK Battery BMS communication
SAFT Evolion Battery BMS communication
Narada Battery BMS communication
Leoch Battery BMS communication
Sacred Sun Battery BMS Battery BMS communication
Northstar ACE Battery(Gateway) communication
Eltek Generic Battery communiction protocol
LVBD (voltage, temperature, mains controllable)
Mains/Grid Monitoring
Phase Failure Monitoring (2-level Alarm)
Phase Voltage Monitoring (4-level Alarm)
Frequency Monitoring (2-level Alarm)*
Active/Reactive/Apperent Power Moitoring 3 phases (2-level Alarms)*
Power Factor Monitoring 3 phases (2-level Alarm)*
Mains Current Monitoring 3 phases (2-level Alarms)*
*Require AC Mains Monitor CAN Node
Load Management/Monitoring
LVLD
Coldstart LVLD
Load Fuse Monitoring (1-level alarm)
Load Current Monitoring (2- level alarm)
Individual Load Fuse Monitoring (1-level alarm)
Individual Load Current Monitoring (2- level alarm)
Individual Load Power Monitoring
Individual Load Energy logging
Individual Load Energy cost logging
Programmable Logic
OR function of multiple alarms/events
AND function of multiple alarms/events
Inversion of logical signals
Task Scheduler (hourly, daily, weekly, monthly) of any commands/events
Alarm Grouping
Hybrid Functionality/Monitoring
SoC Controlled Gen Set start/stop
Voltage Conrolled Gen Set start/stop
Daily Schedule Controlled Gen Set start/stop
Soruce Limitation for Gen Set Testing
Priorty Solar Charger
Priority Wind Charger
Fuel Tank level Monitoring (2-level Alarm)
Available Logs
Energy Logging (mains, rectifier, rectiverter, grid inverter, solar charger, wind, battery, load) - hourly, dailiy, weekly
Data Logging (10 parameters, various trigger intervals and event triggers)
BHL/HAA-loggs
Account login log
Change log
Inventory Export
Climate Control & Monitoring
Fan control, linear speed vs. temp / max speed*
Fan Speed Deviation Monitoring*
Humidity Reduction*
Intervall Preasure Test*
*Require I/O Montior T3
Various Controllers
Security setup (open/close UDP/TCP ports)
User Account Setup
Programmable Buzzer
Remote Software Upgrade - maincontroller over IP
Remote Software Upgrade - CAN Nodes through maincontroler via FTP
Controller/Power Module LED Test
Programmable LED Panel (16 LED / 4 color + 4 Push Button)
Programmable Viritual Inputs
XML Configurations - full parameter flexibility
XML Configurations - mass distribution, Web GUI Upload, Windows Upload, SD Card/FTP Upload
