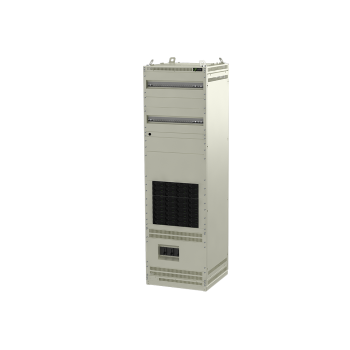

Converged Power System (CPS)
The Eltek Converged Power System (CPS) is the ultimate combination of flexibility, availability, and sustainability, providing a unique modular architecture that will solve any present and future power need.
Whatever the load requirements, or voltage levels, AC and DC, all can be provided by the same infrastructure. Using industry leading high efficiency power conversion modules, innovative design and comprehensive monitoring and control features to fully optimize the potential of the power infrastructure.
Whatever the load requirements, or voltage levels, AC and DC, all can be provided by the same infrastructure. Using industry leading high efficiency power conversion modules, innovative design and comprehensive monitoring and control features to fully optimize the potential of the power infrastructure.
Overview
Unique architecture, maximum reliability

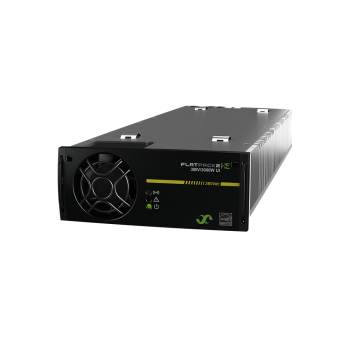

The Eltek Converged Power System is built around the Flatpack2 High Efficiency (HE) power converter module which is used in a wide variety of power critical applications, including; Telecoms; Power Generation; Rail; Marine & Offshore; Oil & Gas; and other demanding industries requiring long term, reliable performance.
Using novel designs to reduce the overall power infrastructure costs, while securing availability through innovative modular based power solutions, the converged power platform provides maximum flexibility and scalability to enable a ‘build as you grow’ philosophy.
The power platform also includes the ability to simply integrate a variety of renewable energy sources to complement traditional utility supplies.
Using novel designs to reduce the overall power infrastructure costs, while securing availability through innovative modular based power solutions, the converged power platform provides maximum flexibility and scalability to enable a ‘build as you grow’ philosophy.
The power platform also includes the ability to simply integrate a variety of renewable energy sources to complement traditional utility supplies.
Key features
- World’s highest availability
- Future proof compact design
- Modular ‘hot plug-in’ design
- Maximum 2 minutes MTTR
- Scalability with ‘build asyou grow’
- Managed flexibility: varying AC and DC loads as required
- Comprehensive alarm and control facilities
- Remote control capabilities
- Option for seamless transfer to generator
- ATS/Switchgear removed or reduced
- Industry leading efficiency
Technical Data
Input
Voltage AC (operating range)
187 - 520 VAC
Max input AC Voltage
480 VAC
Mains configuration
230/400VAC 3 phase (Y);230VAC Single phase
AC Output
Max Output AC Voltage
480 VAC
Max power (kVA/kW)
954 / 795
DC Output
Current (maximum)
2600 ADC
Max voltage
400 VDC
Max power
864 kW
Ports
Available ports
Ethernet;RS-282;RS-485
Battery Distribution
Breaker positions up to
16
Breaker rating up to
600 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
18
Breaker rating up to
2600 A
AC Load Distribution
Number of breakers
12
Breaker rating, up to
1600 A
Other
Operating temperature
-20 - 45 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
600 x 2160 x 600 mm
Dimensions WxHxD (inch)
23,7 x 85 x 23,7 "
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet Eltek Converged Power Solutions - DCPS
- Version 4.1
- 873 kB
- Document number: 2205699
-
Datasheet 380VDC Telecom Expansion Power Solutions
- Version 2
- 878 kB
- Document number: 2314751
