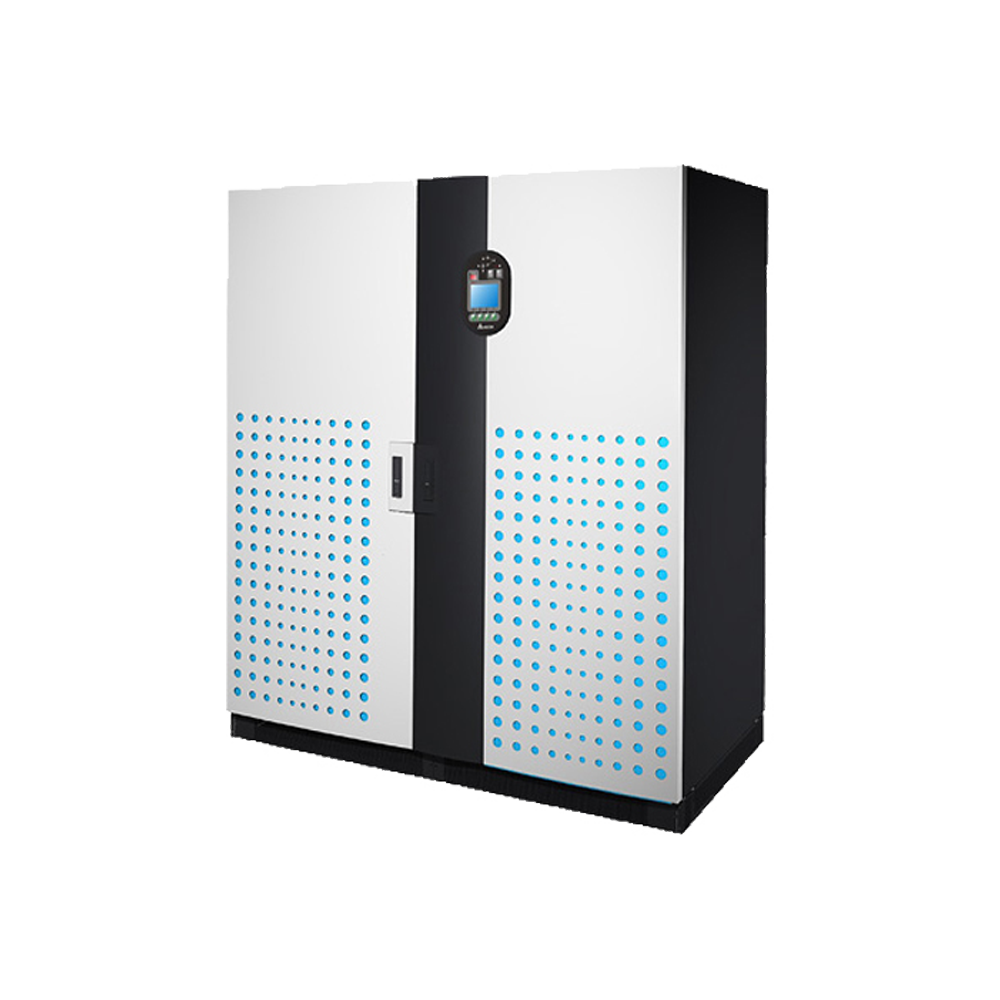

Ultron DPS 160-500kVA

The excellent power performance and high system availability of the Ultron DPS range provides customers with the benefits of a stable power supply, high power efficiency, low capital investment and low overall operational cost.
Overview

Leading in power performance and efficiency

The Ultron DPS series UPS is a double-conversion and IGBT-rectifier three phase UPS. With the three level IGBT topology for both power factor correction (PFC) and inverter, the Ultron DPS features industry leading performance of upto 96% AC/AC efficiency. Thanks to the advanced digital PFC control, it also has low iTHD <3% and high input power factor >0.99 resulting in significant total cost of ownership (TCO) savings.

Aiming to achieve the highest availability possible, the Ultron DPS has enhanced designs for battery management, swappable, fans and ease of maintenance.

Key features

  • N+X redundancy or hot-standby configuration increases system reliability
  • Wide input voltage range allows the UPS to work in harsh electrical environments
  • Field programmable sequential start-up
  • Intelligent fan speed control and redundant fan design prevent overheating
  • Comprehensive battery management sustains battery lifetime and optimal operation
  • High efficiency even at light load saves operating costs
  • High input power factor greater than 0.99, and low input harmonic distortion (less than 3%) save upstream investment
  • Parallel expansion without extra hardware allows quick capacity upgrade tomeet business growth
  • Swappable fans reduce maintenance lead time
  • Built-in manual bypass allows “zero downtime” to ensure system availability during service maintenance
  • Main I/P and O/P switches detection provide quick diagnosis when faults occur
Technical Data
Input
Voltage AC (operating range)
242 - 477 VAC
Max input AC Voltage
415 VAC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
415 VAC
Max power (kVA/kW)
500 / 450
Configurable inputs
Number of configurable inputs
7
Ports
Available ports
RS-282;USB;RS-485;Ethernet
Battery Distribution
Breaker positions up to
1
Breaker rating up to
600 A
LVBD
Yes
AC Load Distribution
Number of breakers
1
Breaker rating, up to
800 A
Other
Operating temperature
0 - 45 °C
Mounting Type
Floor
Dimensions
Dimensions WxHxD (mm)
1600 x 1950 x 865 mm
Dimensions WxHxD (inch)
63 x 76,8 x 34,1 "
Weight
1220 kg
Design Standards
Ingress Protection (IP)
20
