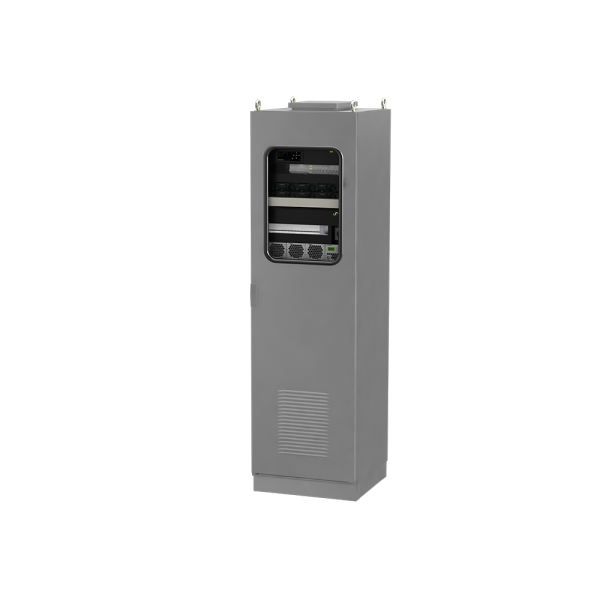

Overview
With a protection class up to IP55
Together with our Industrial building blocks it is suitable for a verity of applications, and can be tailored to fit your specific needs. Combining our Industrial building blocks into a complete system features solutions for multi DC or AC outputs.
Key features
- Protection class up to IP55 preengineered building blocs
- Modular architechture
- 85-300Vac input
- House up to 8 rectifiers
- 2-16kW output
- DC distribution
- Max 300A DC output
- Graphical 3,2TFT display
- Ethernet for remote
- 6 digital inputs
- 6 relay outputs
- SNMP protocol with trap
- Hot pluggable
Technical Data
Input
Current (maximum)
150 ADC
Max input AC Voltage
275 VAC
Max input DC Voltage
145 VDC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
6 / 4,8
DC Output
Max Power
16000 W
Current (maximum)
300 ADC
Max voltage
297 VDC
Max power
16 kW
Battery Distribution
Breaker positions up to
1
Breaker rating up to
250 A
DC Load Distribution
Breaker positions up to
24
Breaker rating up to
40 A
AC Load Distribution
Number of breakers
18
Breaker rating, up to
10 A
Other
Operating temperature
-40 - 45 °C
Dimensions
Dimensions WxHxD (mm)
600 x 2100 x 600 mm
Dimensions WxHxD (inch)
23,62 x 82,68 x 23,62 "
Mounting dimensions
19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
55
