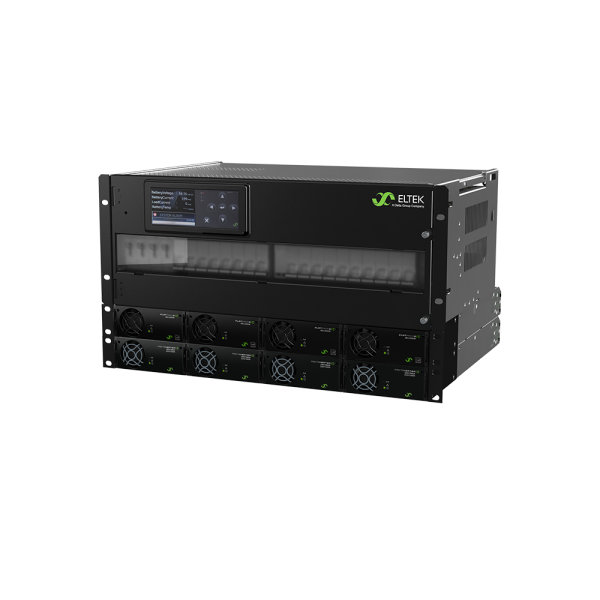

Rectiverter Power Core 6kVA AC 16,8kW DC

The Rectiverter building block combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.
Overview

Rectiverter Power Core 6kVA AC 16,8kW DC

The total DC output can be configured up to 16,8kW DC load where the limitation for AC load is set to max 6 kVA. The 3phase TN network input balance the load between DC output and 1phase AC output to reduce the input circuit breaker for the system.


Key features

  • 400 Vac three phase input
  • 48 Vdc input/output
  • Single phase output
  • Max 6kVA AC output
  • Max 16,8kW dc output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • -48 Vdc distribution option
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
  • Smartpack S controller
Technical Data
Input
Current (maximum)
128 ADC
Max input AC Voltage
475 VAC
Max input DC Voltage
58 VDC
Mains configuration
230/400VAC 3 phase (Y)
AC Output
Max Output AC Voltage
240 VAC
Max power (kVA/kW)
6 / 4,8
DC Output
Max Power
16800 W
Current (maximum)
350 ADC
Max voltage
58 VDC
Max power
16,8 kW
Battery Distribution
Breaker positions up to
2
Breaker rating up to
200 A
LVBD
Yes
DC Load Distribution
Breaker positions up to
14
Breaker rating up to
63 A
LVLD
Yes
AC Load Distribution
Number of breakers
10
Breaker rating, up to
10 A
Other
Operating temperature
-40 - 55 °C
Dimensions
Dimensions WxHxD (mm)
482 x 267 x 432 mm
Dimensions WxHxD (inch)
18,98 x 10,51 x 17,01 "
Mounting dimensions
19" / 6U / 432 Width (Inch) / Height (U) / Depth (mm)
Design Standards
Ingress Protection (IP)
20
