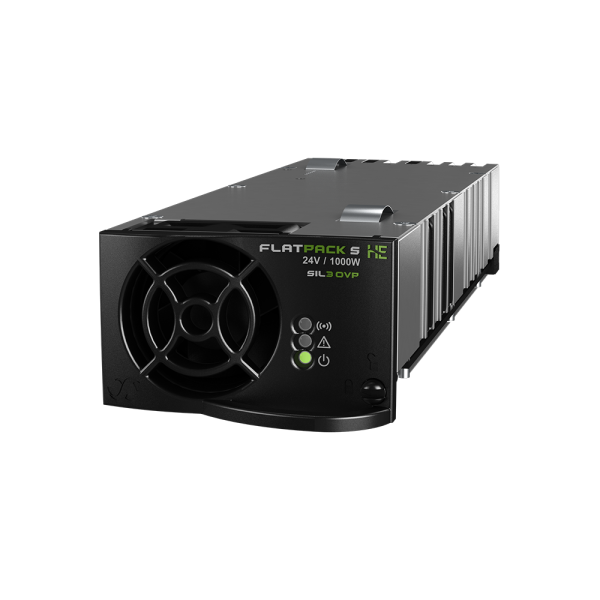

Flatpack S 24V/1000W SIL3 OVP
Flatpack S delivers high power density, wide temperature range and superb reliability in its small 210 mm deep housing. The Flatpack S 24V/1000W SIL3 OVP is targeted Safety and Automation Systems (SAS) in offshore and process industry requiring SIL rated overvoltage protection on DC output.
Overview
Compact high efficiency rectifiers for marine, offshore and process industry applications
Used in the 3U rack with Smartpack S controller, the Flatpack S rectifiers cover 2 to 8kW applications using a minimum of space, less than 18 liters, and low heat dissipation.
Key features
- Small
- Short
- Power dense, 26 W/inch3
- High Efficiency (HE)
- OR-ing protection on output
- SIL3 rated overvoltage
- Protection on output
- Hot pluggable
- Voltage keying
Technical Data
Input
Voltage AC (operating range)
85 - 305 VAC
Voltage DC (operating range)
85 - 305 VDC
DC Output
Max Power
1000 W
Voltage (adjustable range)
41,7 - 21,5 VDC
Current (maximum)
28 ADC
Max voltage
21,5 VDC
Other
Cooling
Single fan
Efficiency
92,5 %
Operating temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
72 x 41,5 x 217 mm
Dimensions WxHxD (inch)
2,83 x 1,63 x 8,54 "
Weight
0,85 kg
Design Standards
Ingress Protection (IP)
20
Downloads ()
-
Datasheet Flatpack S 24/1000 SIL3 OVP
- Version 4
- 611 kB
- Document number: 241122.290.DS3
